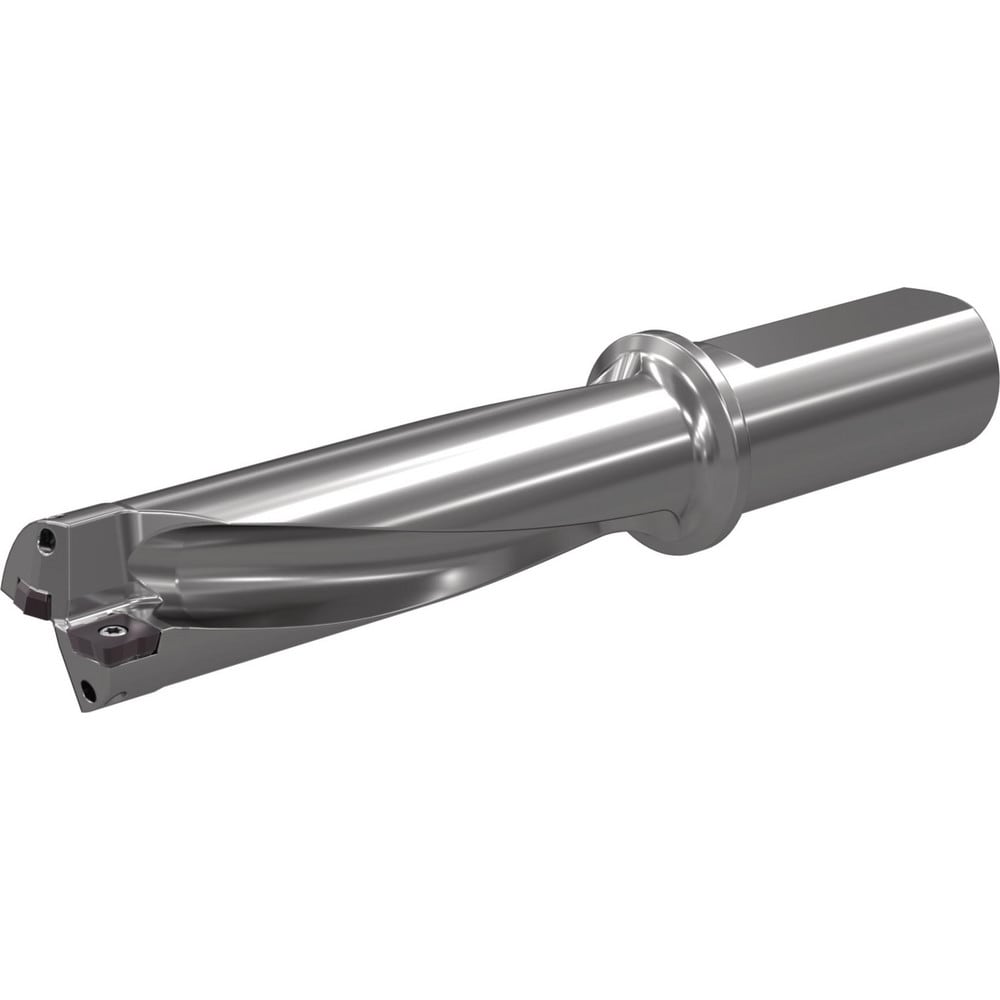

Brand: Widia / Part #: 5537867

Brand: Widia / Part #: 5537867


Item #: 90981630
Brand: Widia
Model #: 5537867

Product Specifications

Maximum Drill Depth 1.5540 in
Drill Depth by Diameter Ratio 3xD
Maximum Depth of Cut (mm) 39.47
Shank Type Weldon Flat
Shank Diameter (mm) 20.0000
Shank Diameter (Decimal Inch) 0.7874
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 59.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 13.00
Overall Length (mm) 109.4700
Overall Length 109.47
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 55.10
Shank Length (mm) 50.000
Gage Length (mm) 59.47
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 13.00
Projection (mm) 59.470
Number Of Flutes 2
Coolant Through Yes
$319.26
