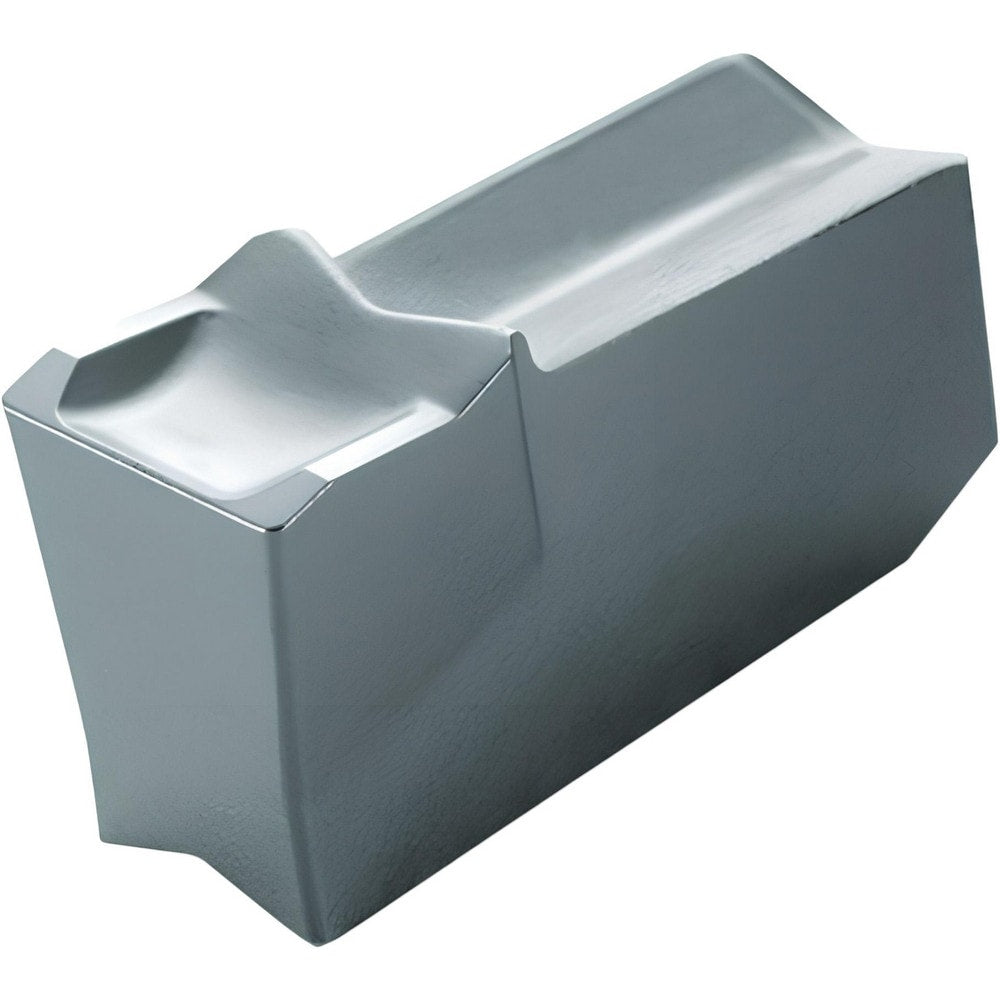

Brand: Ingersoll Cutting Tools / Part #: 6050245
Item #: 79275319
Brand: Ingersoll Cutting Tools
Model #: 6050245
Product Specifications
| Insert Style | TIMC |
| Insert Size Code | 66 |
| Insert Material | Carbide |
| Manufacturer Grade | TT5100 |
| Cutting Width (Inch) | 1/4 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 6.000 |
| Corner Radius (Decimal Inch) | 0.0140 |
| Chipbreaker | C |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving; Parting |
| Series | TIMC |
| Coating Process | MTCVD |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Manufacturers Catalog Number | TIMC66L TT5100 |
| Insert Seat Size | 6 |
| Full Radius | No |
| Cutting Direction | Left Hand |
| Coating Classification | CVD |
| Insert Width (Decimal Inch) | 0.2500 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Single Or Double End | Single |
