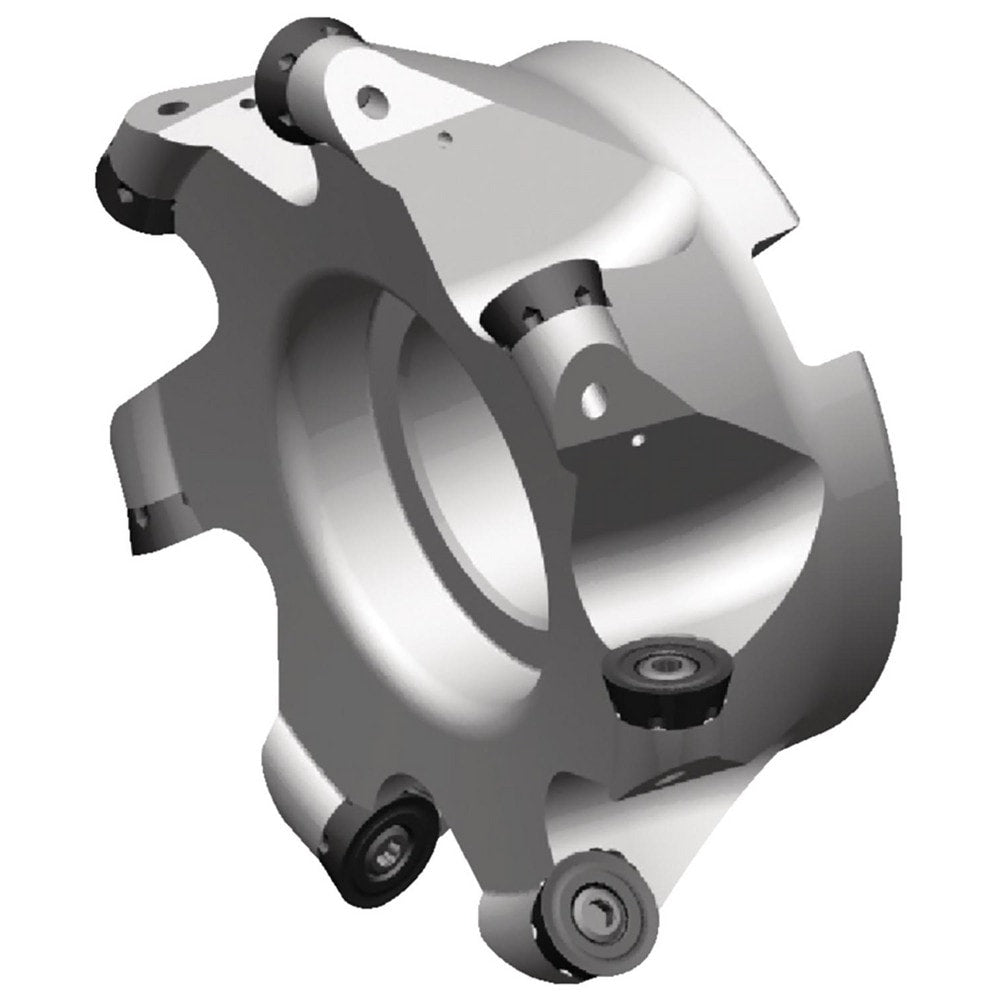

Brand: Widia / Part #: 2021351
Item #: 85351229
Brand: Widia
Model #: 2021351
Product Specifications
| Minimum Cutting Diameter (mm) | 109.00 |
| Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | RD__1605 |
| Maximum Ramping Angle | 2.75 |
| Cutter Style | M100 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M100 |
| Hub Diameter (mm) | 78.000 |
| Keyway Width (mm) | 16.46 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Maximum RPM | 8000.000 |
| Tool Application | Facing; Profiling; Helical Interpolation; Pocketing; Shouldering; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Number Of Cutter Inserts | 7 |
| Coolant Through | No |
