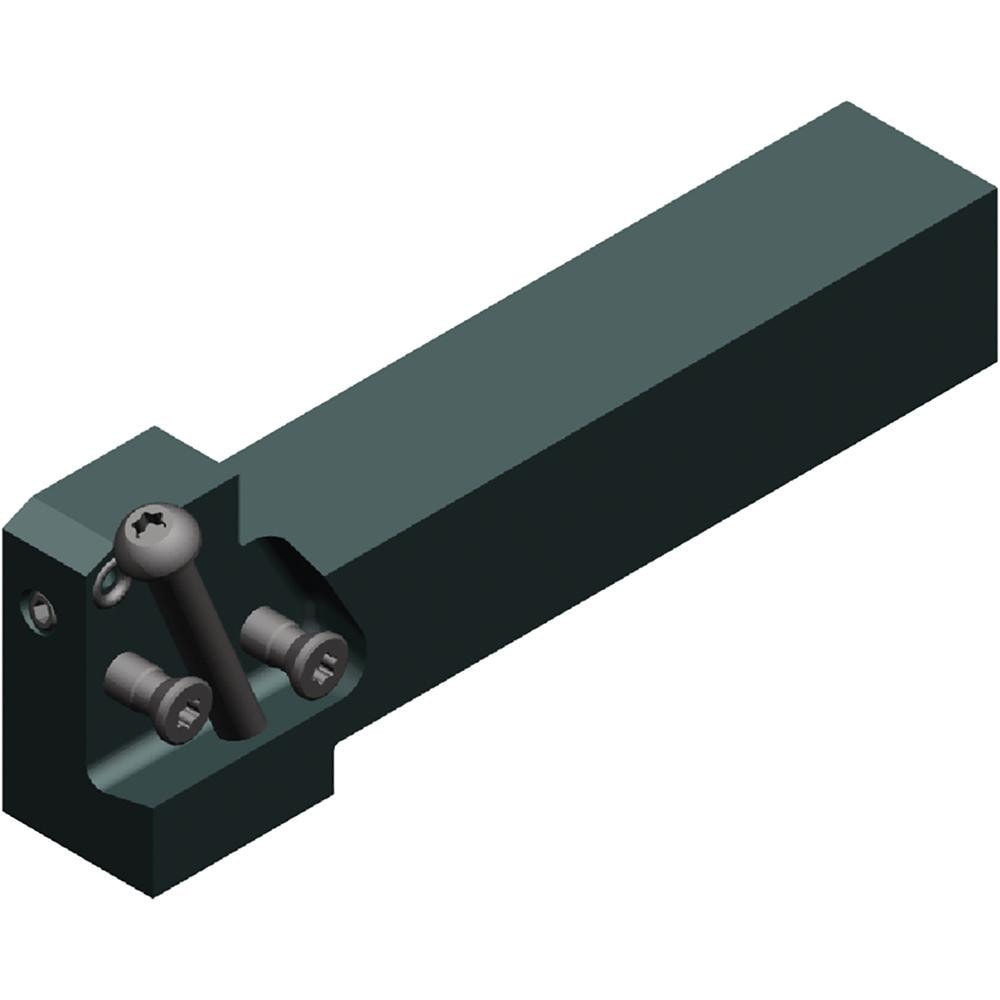

Brand: Widia / Part #: 6499228
Item #: 98295066
Brand: Widia
Model #: 6499228
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 32.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (mm) | 5.00 |
| Minimum Groove Width (mm) | 1.60 |
| Toolholder Style | WGCMS |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 50 |
| Shank Height (mm) | 32.00 |
| Shank Length (mm) | 133.620 |
| Shank Width/Diameter (mm) | 32.00 |
| Series | WGC |
| Overall Length (mm) | 158.7500 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8191 |
| Head Height (mm) | 42.410 |
| Head Length (mm) | 25.13 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 50.0 |
| Coolant Through | Yes |
