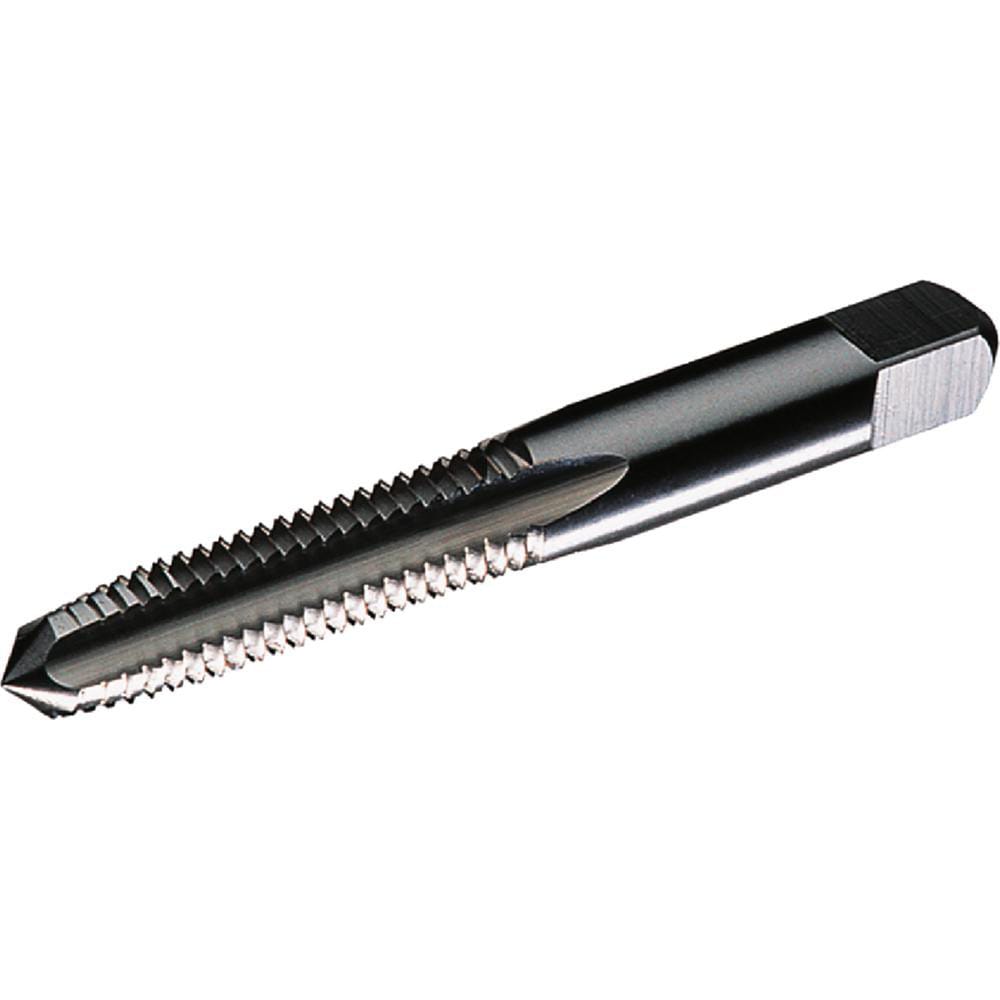

Brand: Widia / Part #: 2748552
Item #: 99807349
Brand: Widia
Model #: 2748552
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 1/2-13 |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | TiN |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.0769 |
| Overall Length (Decimal Inch) | 3.3750 |
| Thread Length (Decimal Inch) | 1.6562 |
| Thread Depth (Decimal Inch) | 1.6562 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Series | 5303 |
| Shank Length (Decimal Inch) | 1.7188 |
