Brand: Widia / Part #: 3900171
Item #: 97983688
Brand: Widia
Model #: 3900171
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 0602.. |

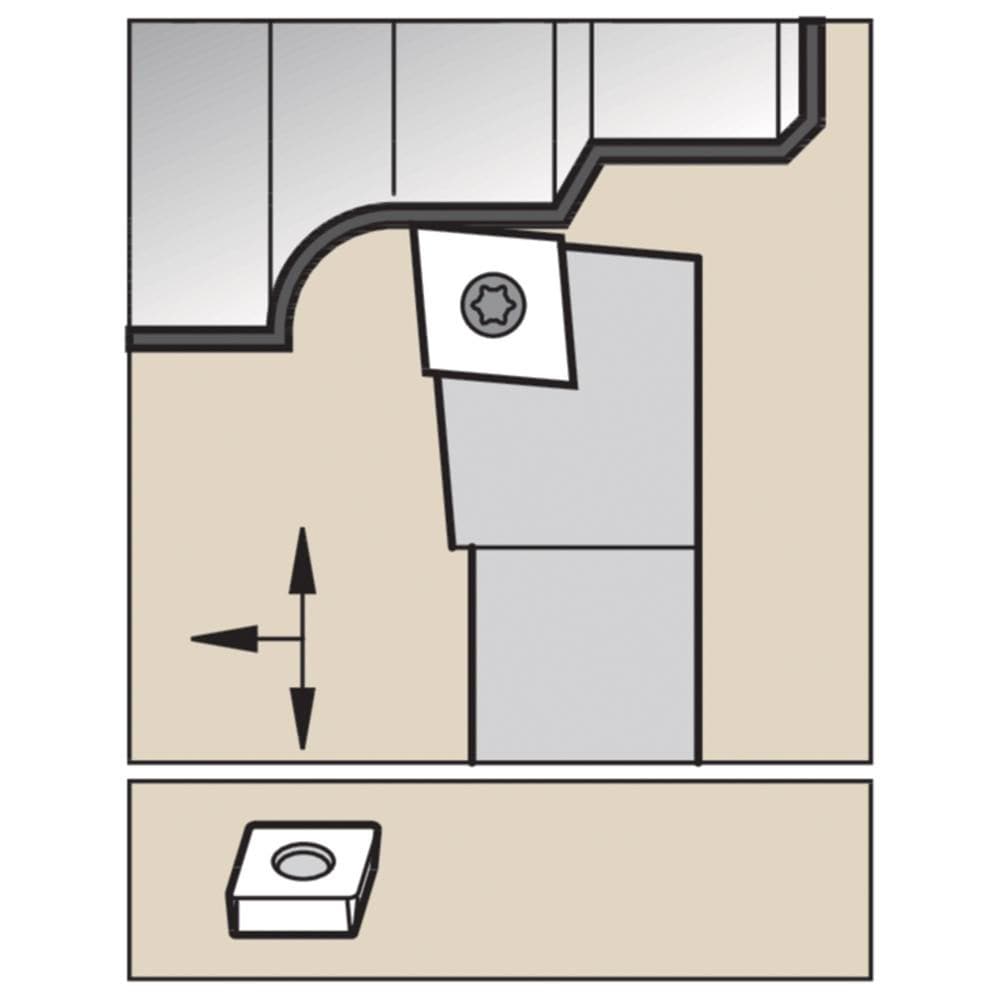

| Toolholder Style | SCLCL |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Screw |
| Insert Compatibility | CC..0602.. |
| Shank Width (mm) | 10.00 |
| Shank Height (mm) | 10.00 |
| Series | SCLC |
| Overall Length (mm) | 70.0000 |
| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 12.00 |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 6.35 |
| Toolholder Material | Steel |
| ISO Number | SCLCL1010E06 |
| Complete Insert Compatibility | CC.. |
| Insert Thickness | 2.38 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 6.35 |
