Brand: Widia / Part #: 3900169

Brand: Widia / Part #: 3900169


Item #: 97730832
Brand: Widia
Model #: 3900169

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 0602..

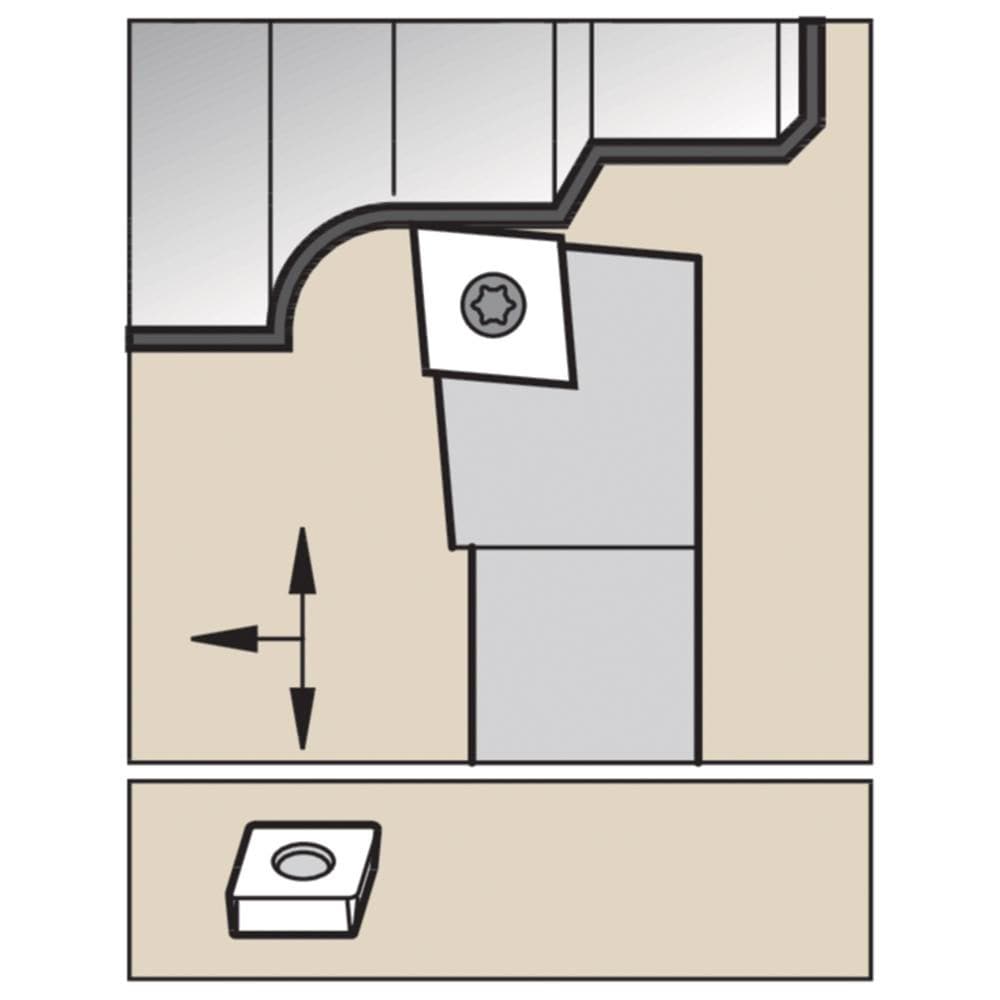

Toolholder Style SCLCR
Rake Positive
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool Yes
Lead Angle 95.000
Insert Holding Method Screw
Insert Compatibility CC..0602..
Shank Width (mm) 10.00
Shank Height (mm) 10.00
Series SCLC
Overall Length (mm) 70.0000
Cutting Tool Application Facing; Copying; Turning
Head Length (mm) 12.00
Back of Bar to Cutting Edge (mm) 12.00
Primary Workpiece Material Universal
Insert Width (mm) 6.35
Toolholder Material Steel
ISO Number SCLCR1010E06
Complete Insert Compatibility CC..
Insert Thickness 2.38
Coolant Through No
Insert Inscribed Circle (mm) 6.35
$138.94
