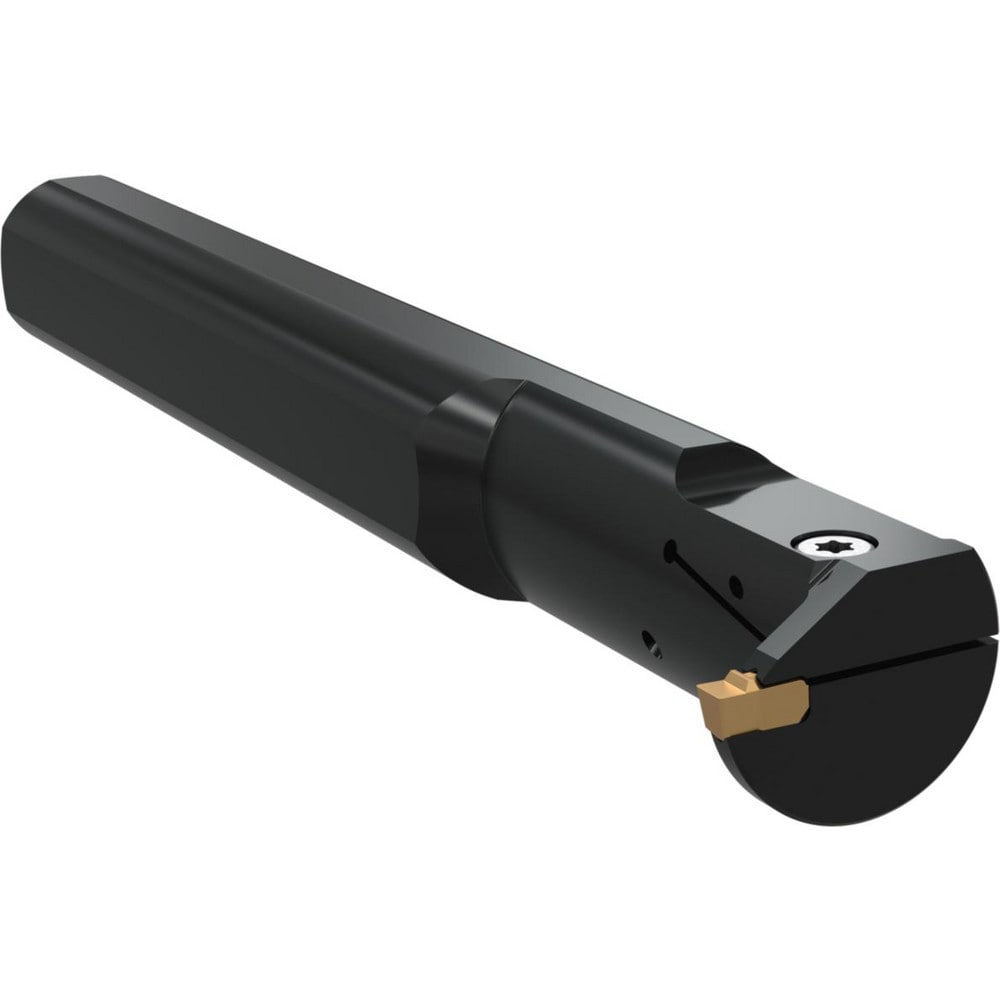

Brand: Widia / Part #: 6949816

Brand: Widia / Part #: 6949816


Item #: 97915730
Brand: Widia
Model #: 6949816

Product Specifications

Internal or External Internal
Toolholder Type Internal Grooving
Insert Seat Size 2
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (Decimal Inch) 0.2756
Minimum Groove Width (Decimal Inch) 0.0787
Toolholder Style WGCEML
Maximum Groove Width (Decimal Inch) 0.0787
Insert Holding Method Clamp
Insert Compatibility WG0200M02P02
Compatible Insert Size Code 2
Shank Width/Diameter (Decimal Inch) 0.6250
Shank Height (Decimal Inch) 5.2448
Series WGC
Shank Length (Decimal Inch) 5.2448
Overall Length (Decimal Inch) 6.0000
Multi-use Tool No
Cutting Tool Application Grooving
Back of Bar to Cutting Edge (Decimal Inch) 0.7480
Center to Cutting Edge (Decimal Inch) 0.4355
Minimum Hole Diameter (Decimal Inch) 0.7874
Head Length (Decimal Inch) 1.2500
Primary Workpiece Material Universal
Vibration Dampening No
Coolant Hole Thread Size 1/8-27 NPT
Coolant Hole Diameter (Decimal Inch) 0.1560
Maximum Bore Depth (Decimal Inch) 1.2500
Mount Type Shank
Manufacturers Catalog Number A10MWGCEML0207I
Toolholder Material Steel
Insert Hand Neutral
Complete Insert Compatibility WG0200M02P02
Minimum Bore Diameter (Decimal Inch) 0.7874
Coolant Through Yes
$140.33
