Brand: Widia / Part #: 3878418
Item #: 98262876
Brand: Widia
Model #: 3878418
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 1204.. |

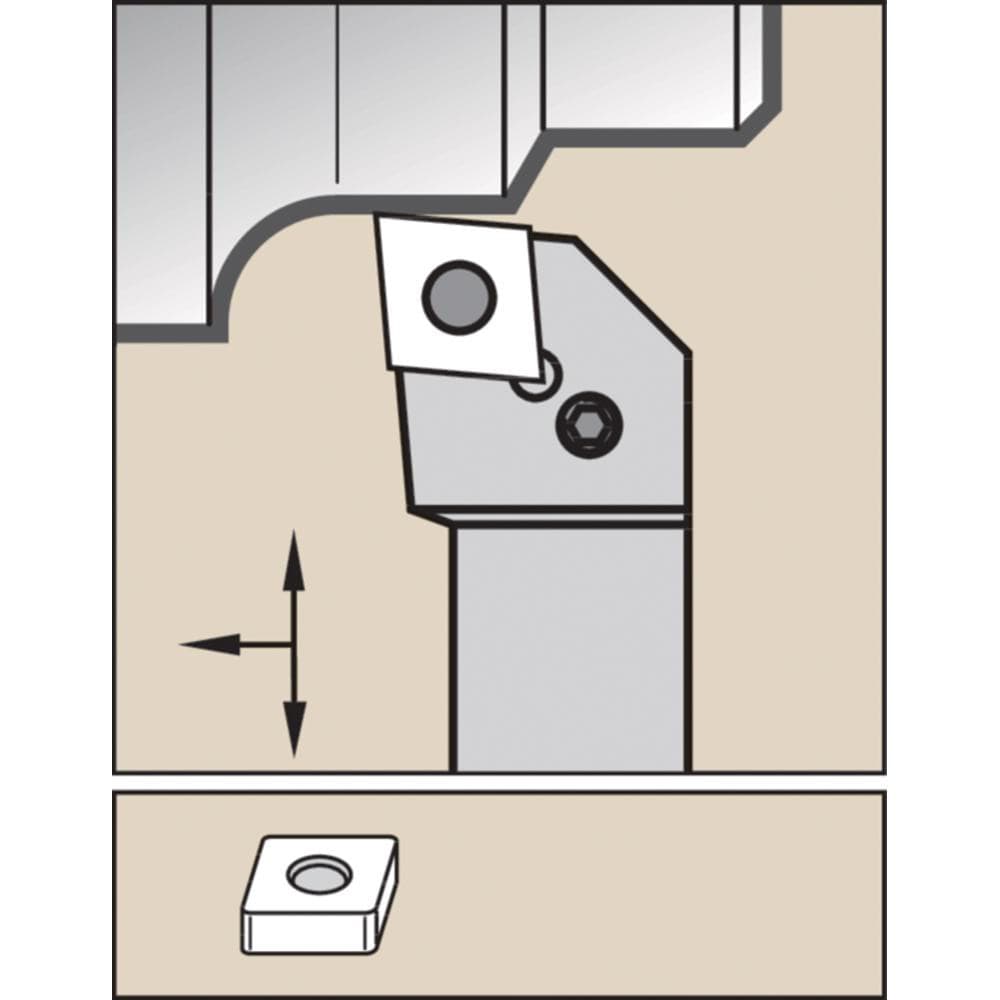

| Toolholder Style | PCLNL |
| Rake | Negative |
| Rake Angle | -6 (Axial);-6 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Pin |
| Insert Compatibility | CN..1204.. |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Series | PCLN |
| Overall Length (mm) | 125.0000 |
| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 25.91 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 12.70 |
| Toolholder Material | Steel |
| ISO Number | PCLNL2020K12 |
| Complete Insert Compatibility | CN.. |
| Insert Thickness | 4.76 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 12.70 |
