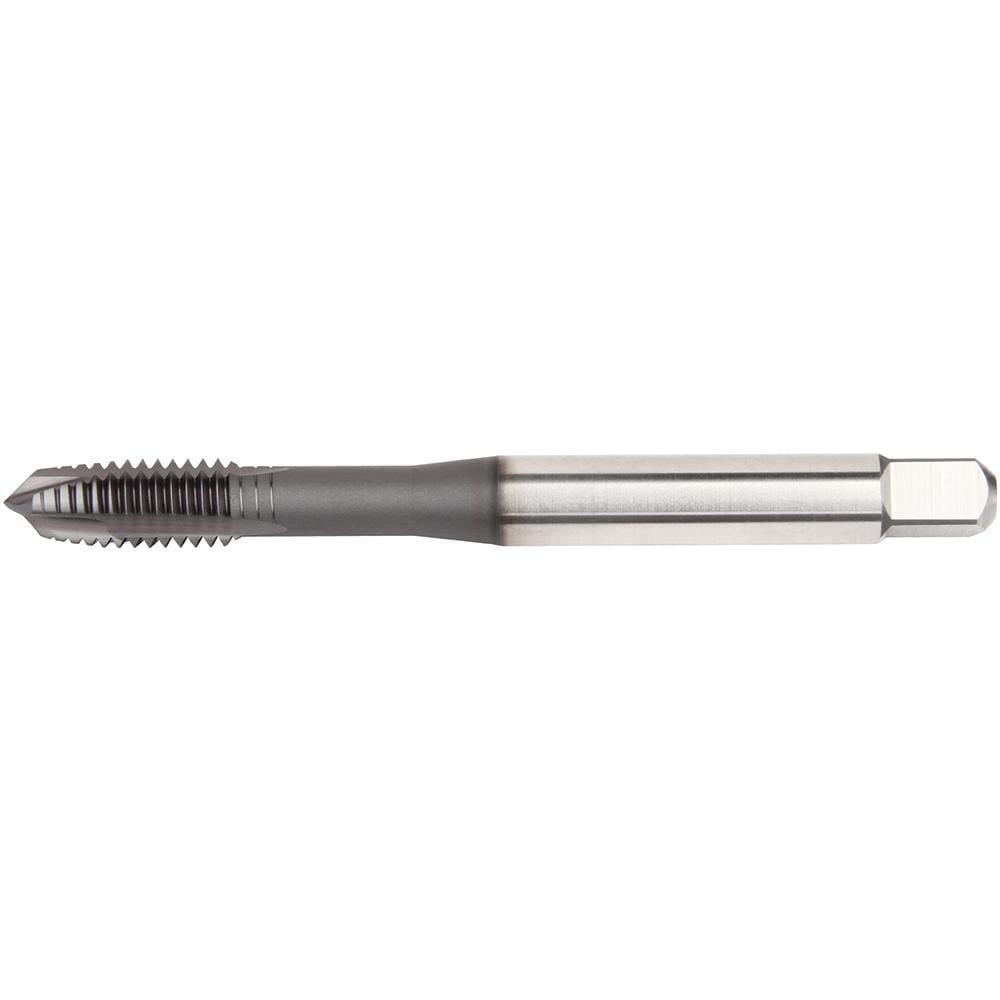

Brand: Widia / Part #: 5366668
Item #: 93307858
Brand: Widia
Model #: 5366668
Product Specifications
| Thread Size (mm) | M3x0.5 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | Black Oxide |
| Threads per Inch | 51 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 18.00 |
| Thread Pitch (mm) | 0.50 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (mm) | 8.00 |
| Overall Length (mm) | 56.0000 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Square Length (mm) | 6.00 |
| Square Size (mm) | 2.70 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
