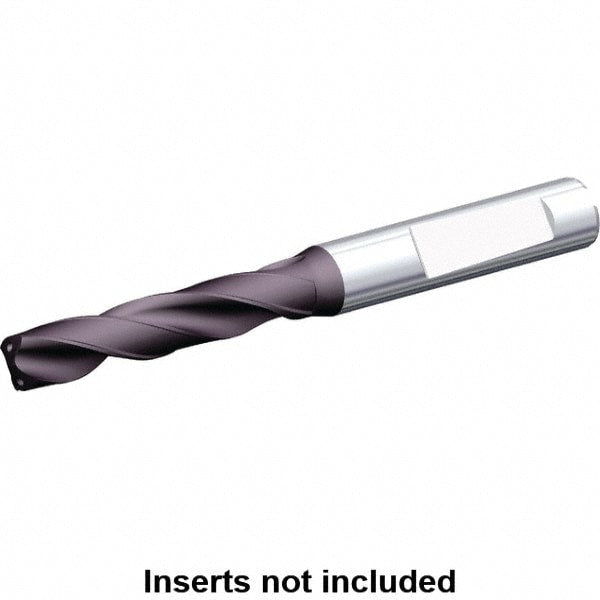

Jobber Drill: 3.20 mm Dia, 140 deg Point, Solid Carbide
Item #: 31554843
Brand: Kennametal
Model #: 3043177
Product Specifications
| Drill Bit Size (mm) | 3.20 |
| Drill Bit Size (Decimal Inch) | 0.1260 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Spiral Type | Regular |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (mm) | 23.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 0.52 |
| Shank Type | Whistle Notch |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 3.00 - 4.00 |
| Material Grade | KC7315 |
| UNSPSC Code | 23241634 |
