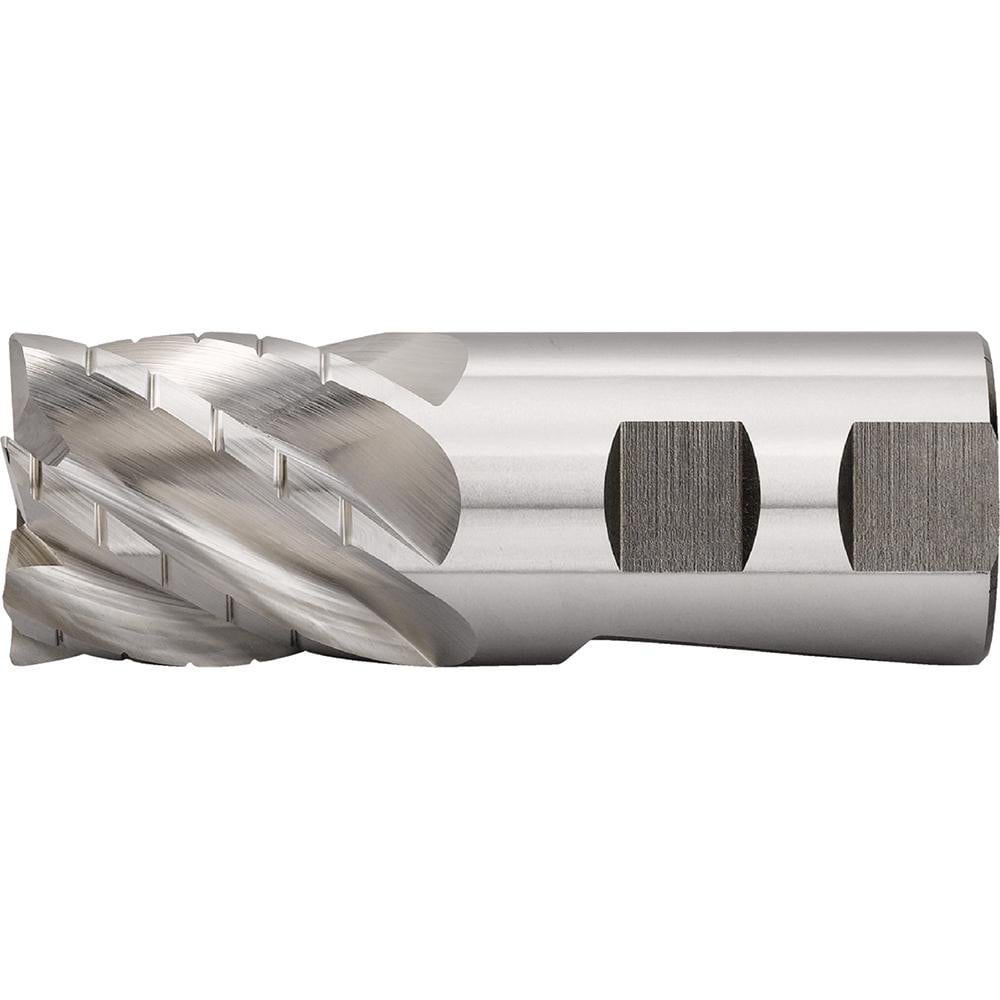

Brand: Widia / Part #: 5599915
Item #: 33969833
Brand: Widia
Model #: 5599915
Product Specifications
| Mill Diameter (Inch) | 1-1/4 |
| Coating/Finish | Bright/Uncoated |
| End Mill Material | Cobalt |
| Number Of Flutes | 6 |
| Overall Length (Inch) | 6-1/2 |
| Length of Cut (Inch) | 4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 6.5000 |
| Chipbreaker | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 4.0000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Secondary Workpiece Material | Stainless Steel; High Temperature Alloy |
| Secondary Workpiece Material Code | S; M |
| Material Grade | M42 |
| Series | 620E |
