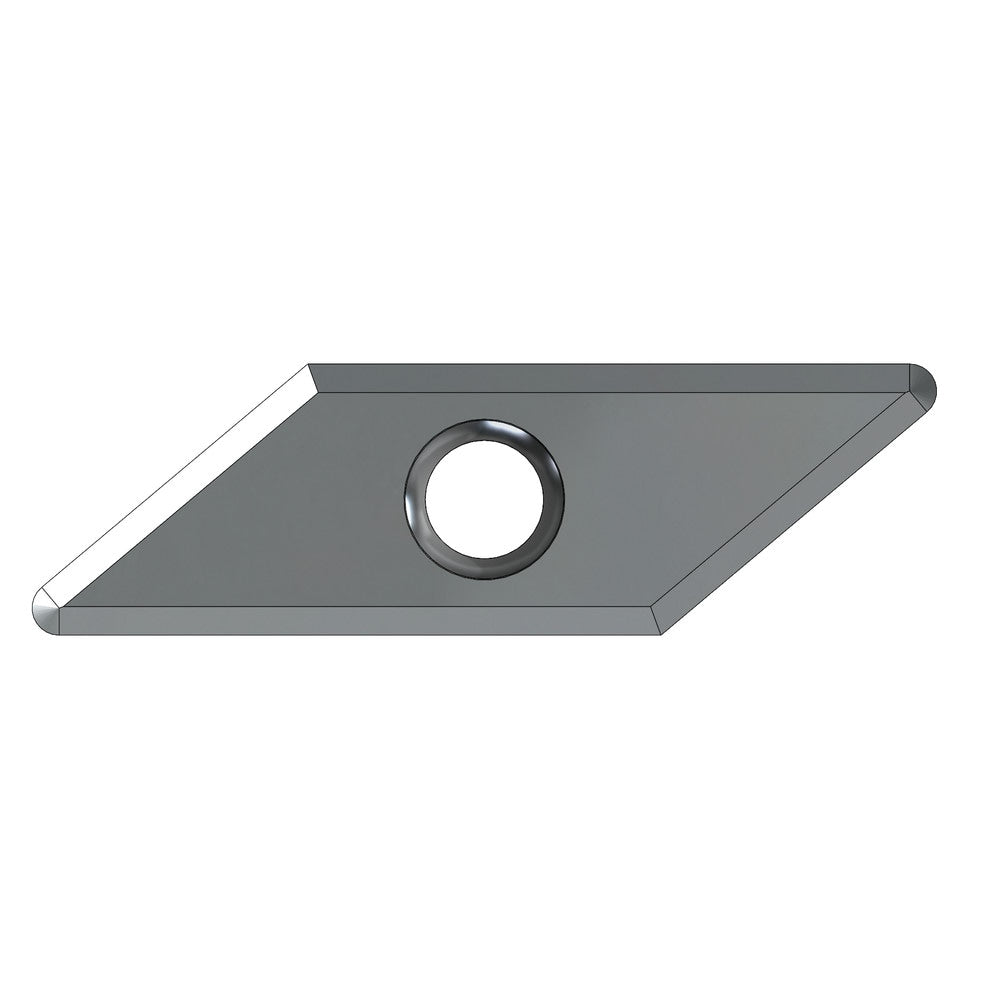

Milling Insert: DEXI, Carbide
Item #: 64438971
Brand: A.B. Tools
Model #: DI90WL-2
Product Specifications
| Insert Style | Di90WL |
| Insert Size | Di90WL |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | DEXI |
| Corner Radius (Decimal Inch) | 0.0300 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Manufacturers Catalog Number | DI90WL-2 |
| Cutter Series Compatibility | DEXI |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Included Angle Degree | 90 |
| Insert Style | Di90WL |
| Insert Size | Di90WL |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | DEXI |
| Corner Radius (Decimal Inch) | 0.0300 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Manufacturers Catalog Number | DI90WL-2 |
| Cutter Series Compatibility | DEXI |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Included Angle Degree | 90 |
| MSC Part # | 64438971 |
| Mfr Part # | DI90WL-2 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
