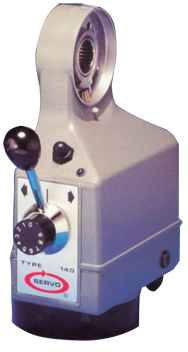

Cross Power Feed - 150 inch/lbs; For Clausing/Kondia

Item #: JD80M4950150
Manufacturer: Servo
Mfg #: M-4950-150

Technical Specifications:
•Brand Name: Servo •Description: 150 inch/lbs •For Use With: Clausing/Kondia •Model Number: M-4950-150 •Type: 150

Description:
•Semi-automated machining on Class 1 mills to 3 hp. •Peak Torque (full-wave SCR control compound DC motor): to 150 in.- lb. / 17 NM torque •Intermittent Torque: 120 in.- lb. / 13.6 NM •Continuous Torque: 100 in.- lb. / 11.3 NM •Variable Feed Rate: .50-35 IPM / 13-889 mm/min •Gear Reduction Ratio (motor to screw shaft): 72:1. •Helical gearing and torque limiting friction safety clutch with new and improved gear •Electrical: 110V, 50/60 Hz, 2.5A. •Approximate weight: 15 lb. / 6.8 kg.

Shipping Info:
•Actual Weight - 15.9800 •Shipping Weight - 30.0000 •Dimensions - Height: 23.0 Length: 23.0 Width: 8.00
