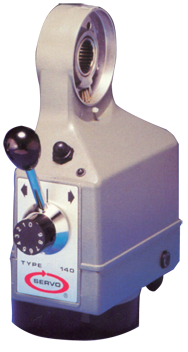

Table Power Feed - 150 inch/lbs; For LMV

Item #: JD80M3700150
Manufacturer: Servo
Mfg #: M-3700-150

Technical Specifications:
•Brand Name: Servo •Description: X-Axis Table Feed •For Use With: Sharp LMV •Model Number: M-3700-150 •Type: 150

Description:
•Semi-automated machining on Class 1 mills to 3 hp. •Peak Torque (full-wave SCR control compound DC motor): to 150 in.- lb. / 17 NM torque •Intermittent Torque: 120 in.- lb. / 13.6 NM •Continuous Torque: 100 in.- lb. / 11.3 NM •Variable Feed Rate: .50-35 IPM / 13-889 mm/min •Gear Reduction Ratio (motor to screw shaft): 72:1. •Helical gearing and torque limiting friction safety clutch with new and improved gear •Electrical: 110V, 50/60 Hz, 2.5A. •Approximate weight: 15 lb. / 6.8 kg.

Shipping Info:
•Actual Weight - 21.0000
