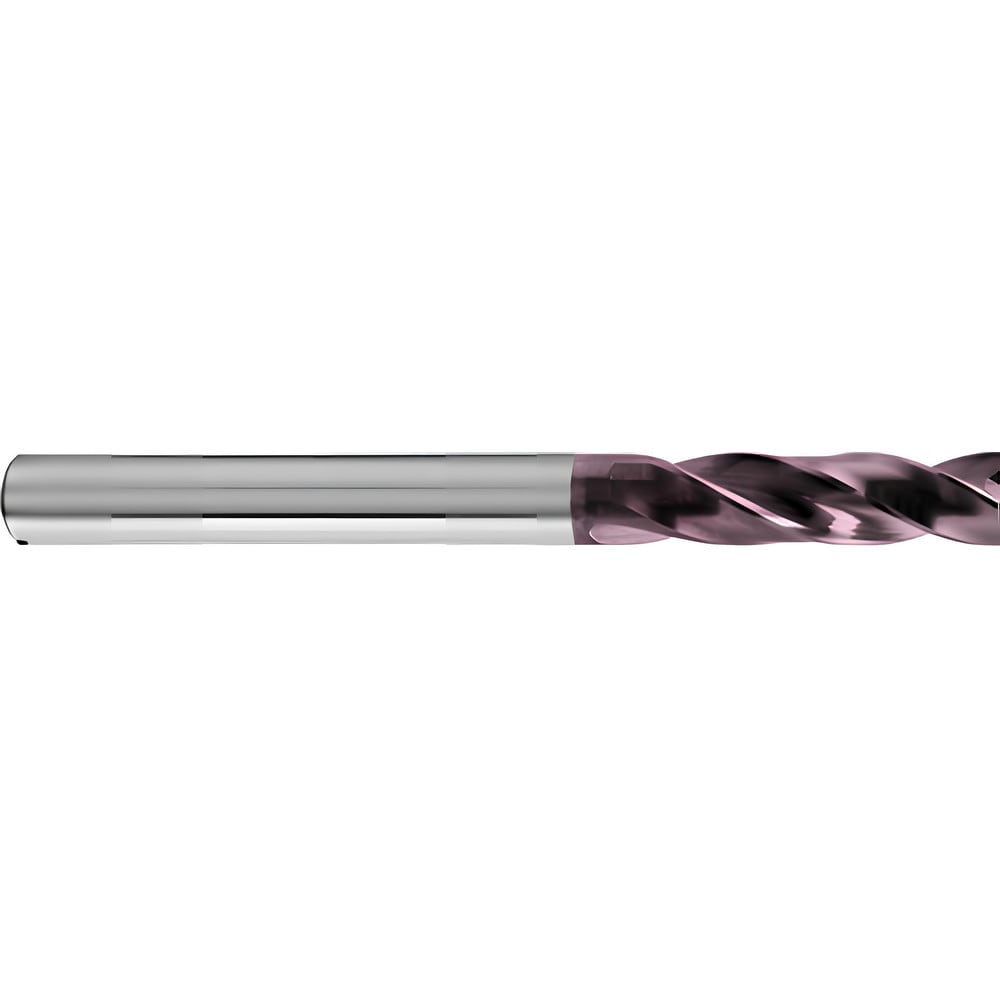

Brand: Guhring / Part #: 9065960175500
Item #: 74884768
Brand: Guhring
Model #: 9065960175500
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6909 |
| Drill Bit Size (mm) | 17.55 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Nano-FIREX |
| Drill Point Angle | 180 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Flat-Bottom |
| Coolant Through | Yes |
| Shank Type | Straight |
| Number Of Flutes | 2 |
| Overall Length (mm) | 120.0000 |
| Shank Diameter (mm) | 18.0000 |
| Series | 6596 |
| Drill Length Type | Screw Machine Length |
| Point Type | flat |
| Maximum Drilling Depth (mm) | 43.68 |
| Shank Length (mm) | 48.000 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | N7 |
| Flute Length (mm) | 70.00 |
