Brand: Widia / Part #: 3650473
Item #: 98276694
Brand: Widia
Model #: 3650473
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 14.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (mm) | 5.00 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | WMTSR |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | S500 |
| Insert Compatibility | WMTS500M5P03PT |
| Shank Height (mm) | 20.00 |
| Shank Length (mm) | 88.470 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | WMT |
| Overall Length (mm) | 125.0000 |

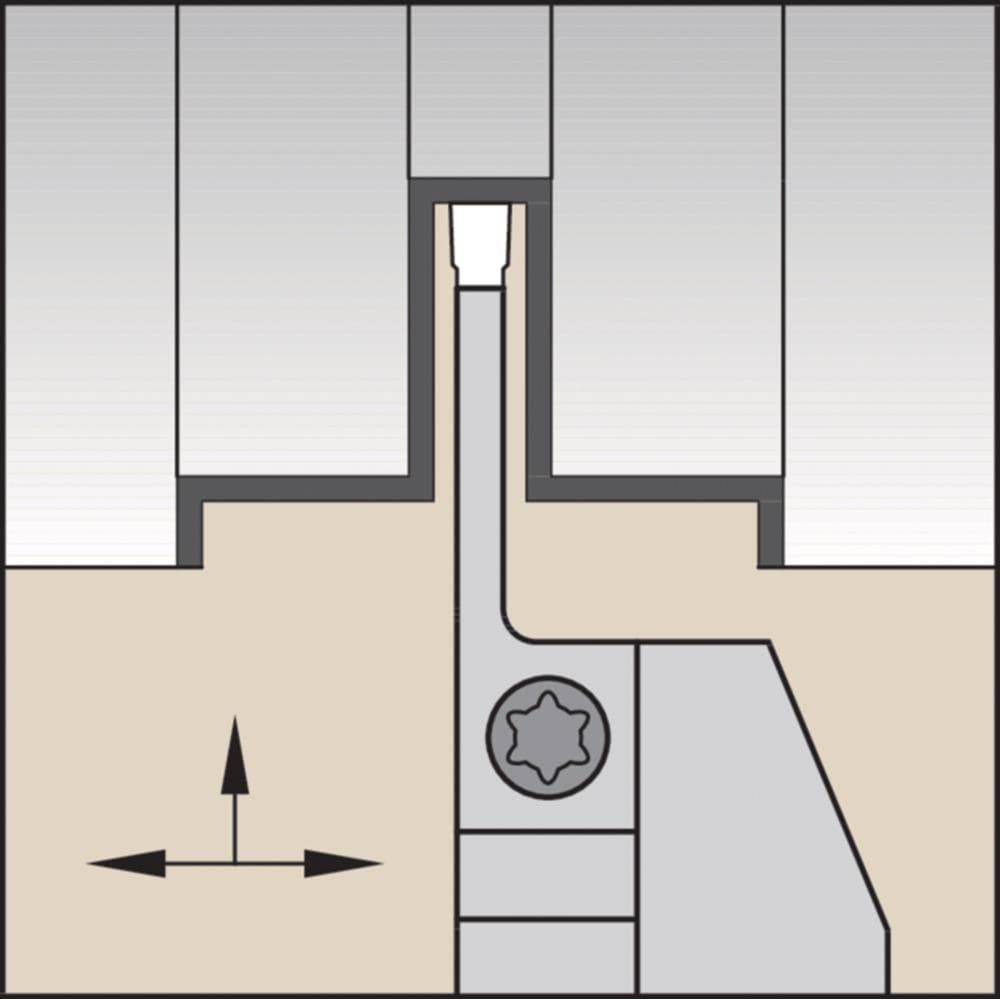

| Cutting Tool Application | Grooving; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7880 |
| Head Height (mm) | 28.740 |
| Head Length (mm) | 36.53 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 5.0 |
| Coolant Through | No |
