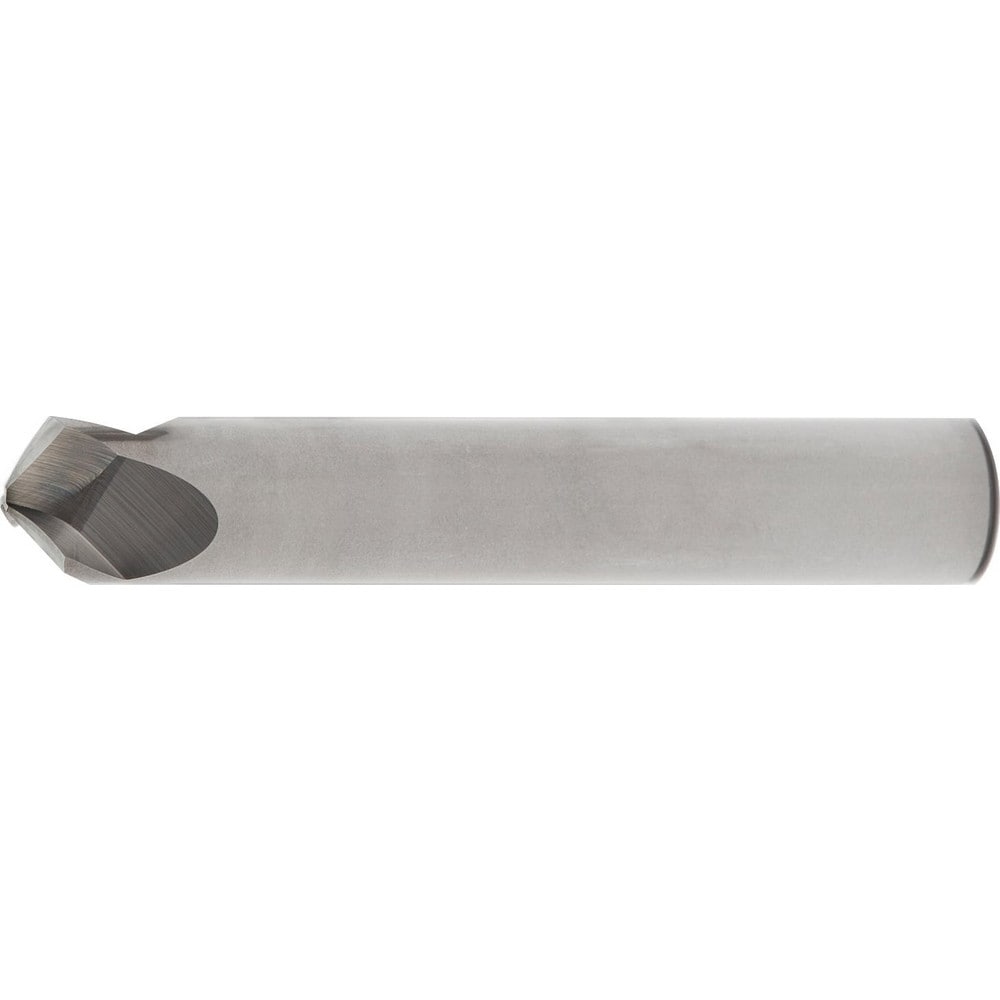

Brand: Scientific Cutting Tools / Part #: HC62505-120
Item #: 90875055
Brand: Scientific Cutting Tools
Model #: HC62505-120
Product Specifications
| Cutter Head Diameter (Decimal Inch) | 0.0900 |
| Number Of Flutes | 5 |
| End Type | Single |
| Included Centerline Angle | 120 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3 |
| Tool Application | Chamfering |
| Cutting Direction | Right Hand |
| Cutting Edge Style | Helical |
| Body Diameter (Inch) | 5/8 |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Material Application | Non-Ferrous Metal; Aluminum; Plastic |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1540 |
| Body Diameter (Decimal Inch) | 0.6250 |
| Coating/Finish | Uncoated |
| Single Or Double End | Single |
| Additional Information | Tip to Theoretical Sharp 0.0270; Tip Diameter 0.090 |
