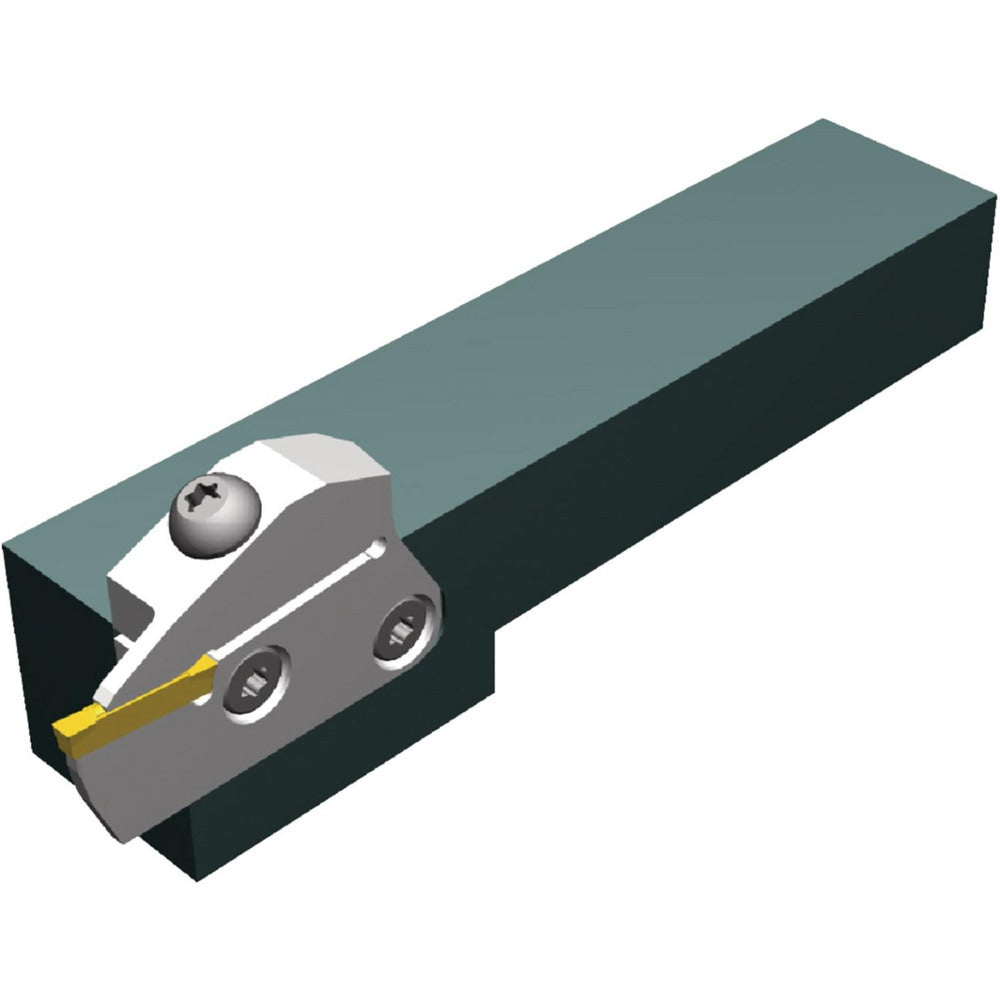

Brand: Widia / Part #: 5349621

Brand: Widia / Part #: 5349621


Item #: 18120238
Brand: Widia
Model #: 5349621

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.8660
Hand of Holder Right Hand
Maximum Groove Width (Decimal Inch) 0.2360
Minimum Groove Width (Decimal Inch) 0.0551
Toolholder Style WGMSR
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0600; 0400; 0500; 0200; 0300; 0100; 094
Shank Height (Inch) 3/4
Shank Height (Decimal Inch) 0.7500
Shank Length (Decimal Inch) 2.7500
Shank Width/Diameter (Decimal Inch) 0.7500
Shank Width/Diameter (Inch) 3/4
Series WMT
Overall Length (Decimal Inch) 4.3000
Cutting Tool Application Grooving; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 0.3090
Head Height (mm) 31.560
Head Length (Decimal Inch) 1.5500
Primary Workpiece Material Universal
Insert Seat Size 100.0
Coolant Through No
$126.57
