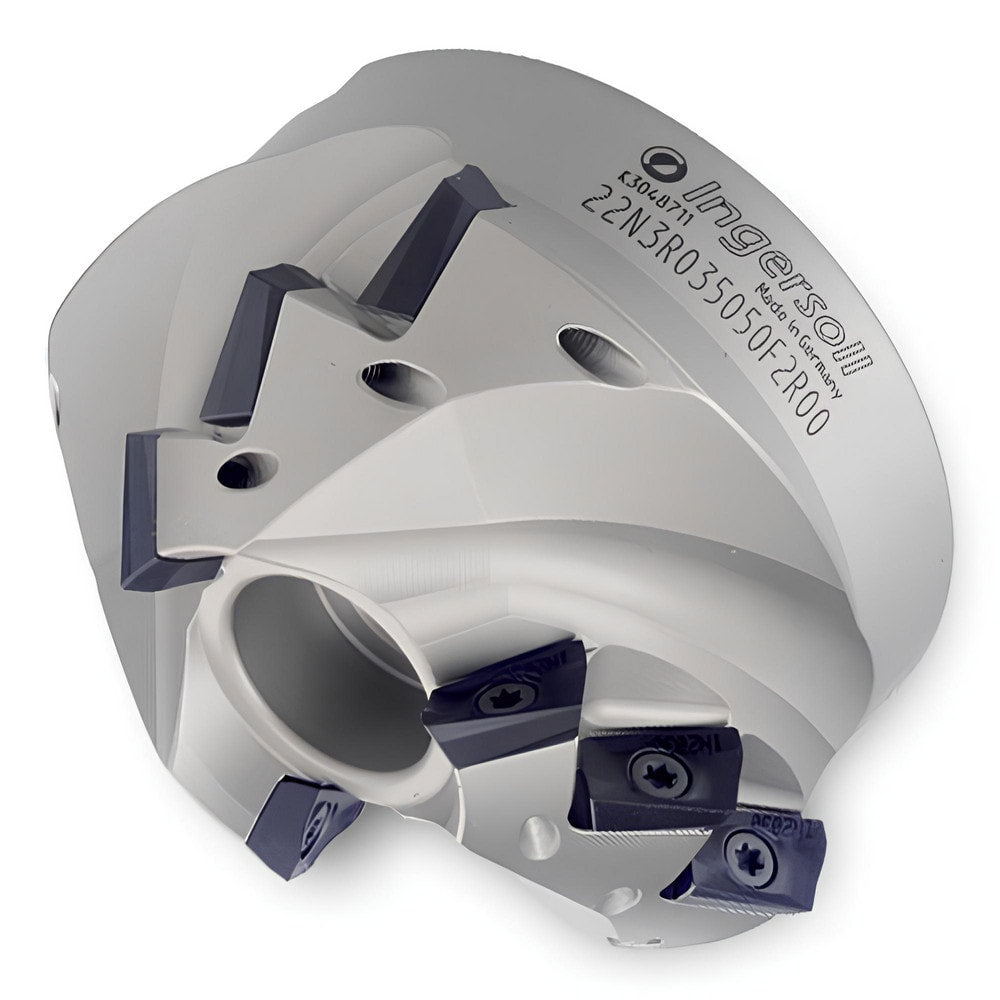

Brand: Ingersoll Cutting Tools / Part #: 3028732
Item #: 96725668
Brand: Ingersoll Cutting Tools
Model #: 3028732
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.3750 |
| Minimum Cutting Diameter (Inch) | 1-3/8 |
| Maximum Cutting Diameter (mm) | 83.82 |
| Maximum Cutting Diameter (Decimal Inch) | 3.3000 |
| Maximum Depth of Cut (Decimal Inch) | 0.9500 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 1204 |
| Cutter Style | 22N3X |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | 22N3X |
| Keyway Width (Decimal Inch) | 0.3800 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Pitch Type | Close |
| Tool Application | Chamfering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | ZOMT1204; AOxT1204 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 22N3X-13020D3R01 |
| Number Of Cutter Inserts | 9 |
| Coolant Through | No |
| Number Of Flutes | 3 |
