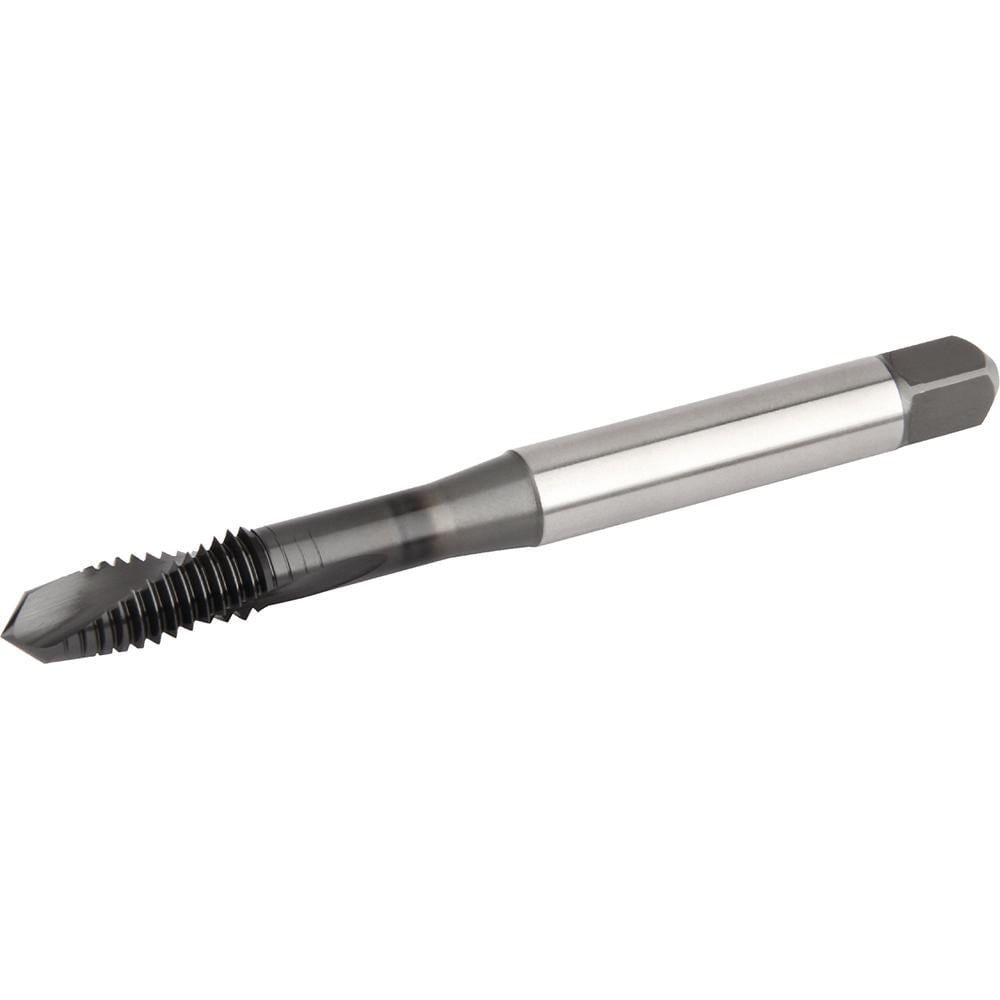

Brand: Widia / Part #: 5690893
Item #: 97521090
Brand: Widia
Model #: 5690893
Product Specifications
| Thread Size (Inch) | #2-56 |
| Chamfer | Plug |
| Thread Limit | H2 |
| Class Of Fit | 3B |
| Number Of Flutes | 2 |
| Material | High Speed Steel |
| Threads per Inch | 56 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | C; CrC; TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3100 |
| Overall Length (Decimal Inch) | 1.7700 |
| Thread Depth (Decimal Inch) | 0.7100 |
| Thread Pitch (Decimal Inch) | 0.0179 |
| Thread Standard | UNC |
| Material Grade | WN44EG |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1080 |
| Material Application | Non-Ferrous Metal |
| Series | GT72 |
