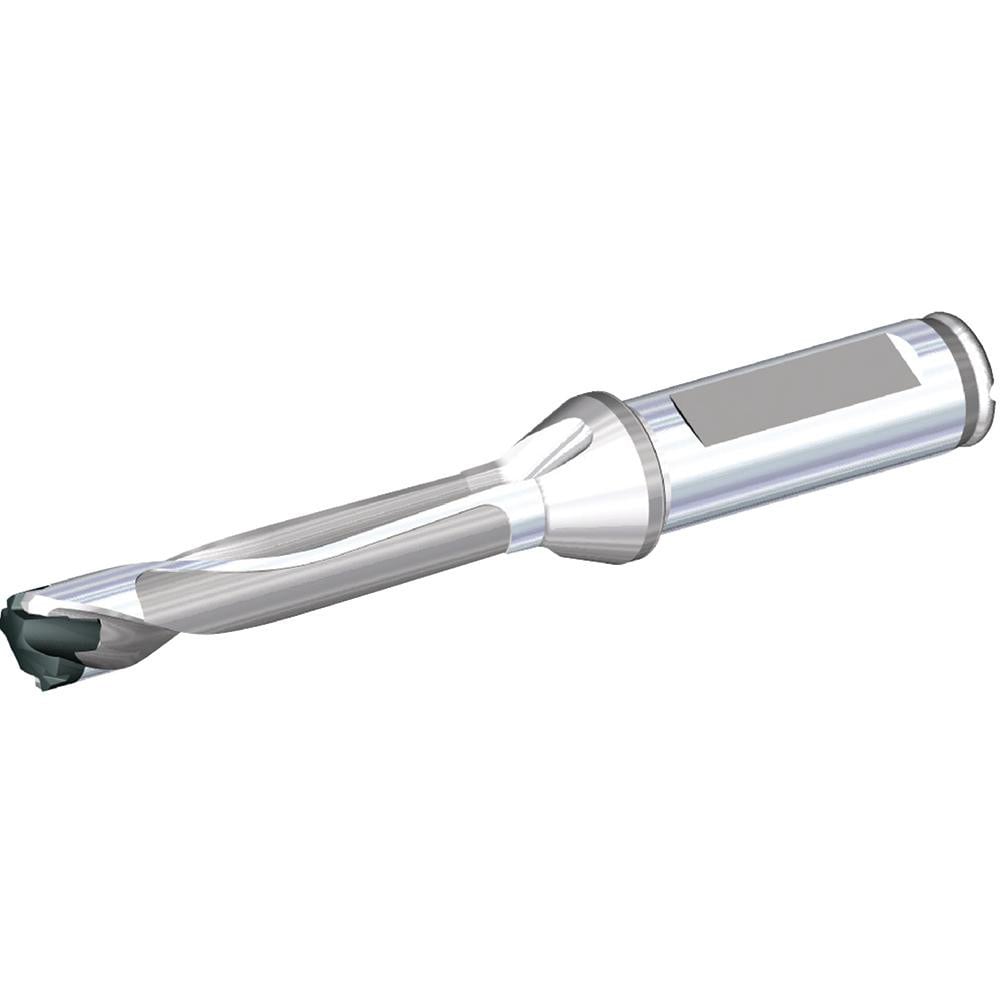

Brand: Widia / Part #: 4099055

Brand: Widia / Part #: 4099055


Item #: 90407602
Brand: Widia
Model #: 4099055

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.9449
Maximum Drill Diameter (Decimal Inch) 0.9839
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Fractional Inch) 4-59/64
Maximum Drill Depth (Decimal Inch) 4.9211
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 1
Shank Diameter (Decimal Inch) 1.0000
Insert Seat Size W33
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W33
Overall Length (Decimal Inch) 8.5797
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 6.1585
Body Length (Decimal Inch) 5.8947
Shank Length (Decimal Inch) 2.2047
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.1728
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$530.80
