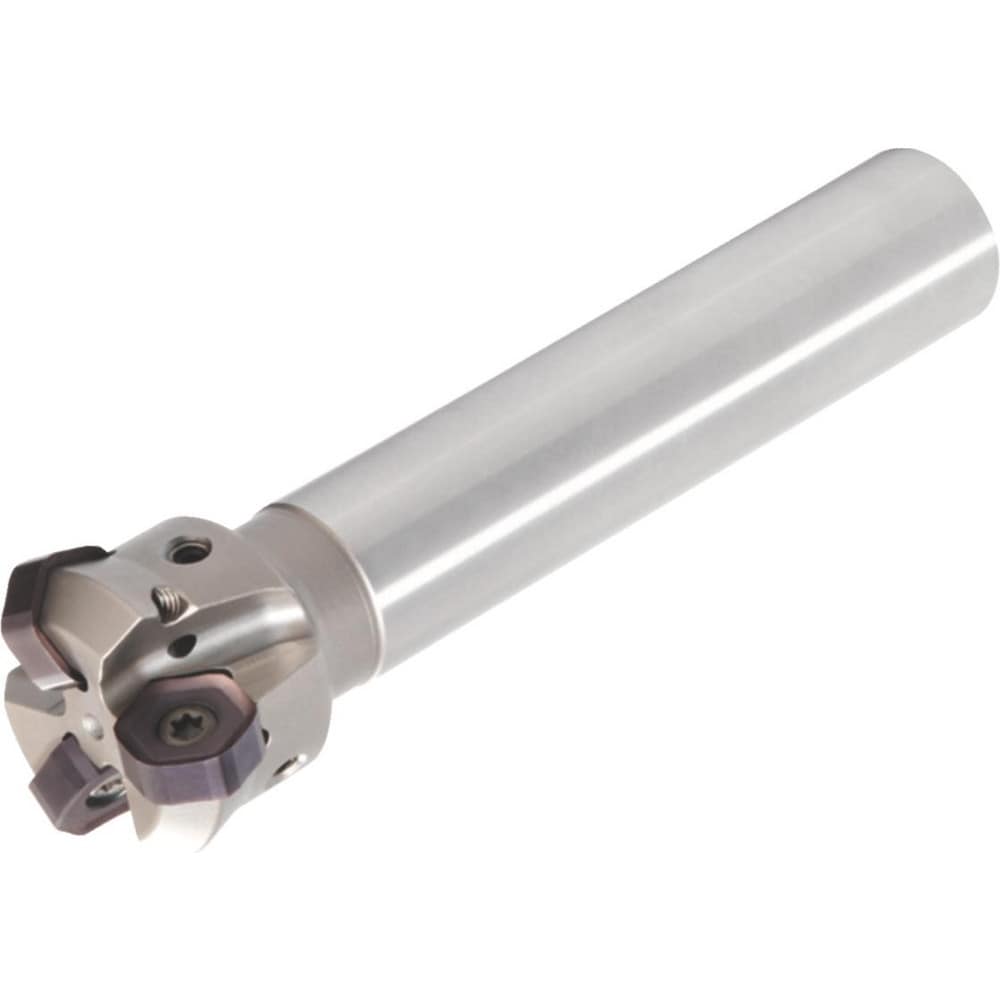

Brand: Widia / Part #: 3958030
Item #: 98393440
Brand: Widia
Model #: 3958030
Product Specifications
| Cutting Diameter (mm) | 25 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 33.72 |
| Lead Angle | 45 |
| Maximum Depth of Cut (mm) | 3.50 |
| Compatible Insert Size Code | HN..0704 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Shank Taper Size | None |
| Number Of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Style | HN.. |
| Insert Holding Method | Screw |
| Overall Length (mm) | 200.0000 |
| Overall Height (Mm - 5 Decimals) | 200.00000 |
| Series | M1200 Mini |
| Toolholder Style | M1200 |
| Functional Length (mm) | 32.00 |
| Maximum Body Diameter (mm) | 30.86 |
| Maximum RPM | 20000.000 |
| Modular Connection Size | None |
| Tool Application | Chamfering; Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Head Length (mm) | 32.00 |
| Shank Length (mm) | 168.000 |
| Coolant Hole Diameter (mm) | 5.00 |
| Complete Insert Compatibility | HN..0704 |
| ISO Number | M1200D025Z03A25HN07L200 |
| Rake | Negative |
| Number Of Flutes | 3 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| Radial Rake Angle (Degrees) | -13.1 |
