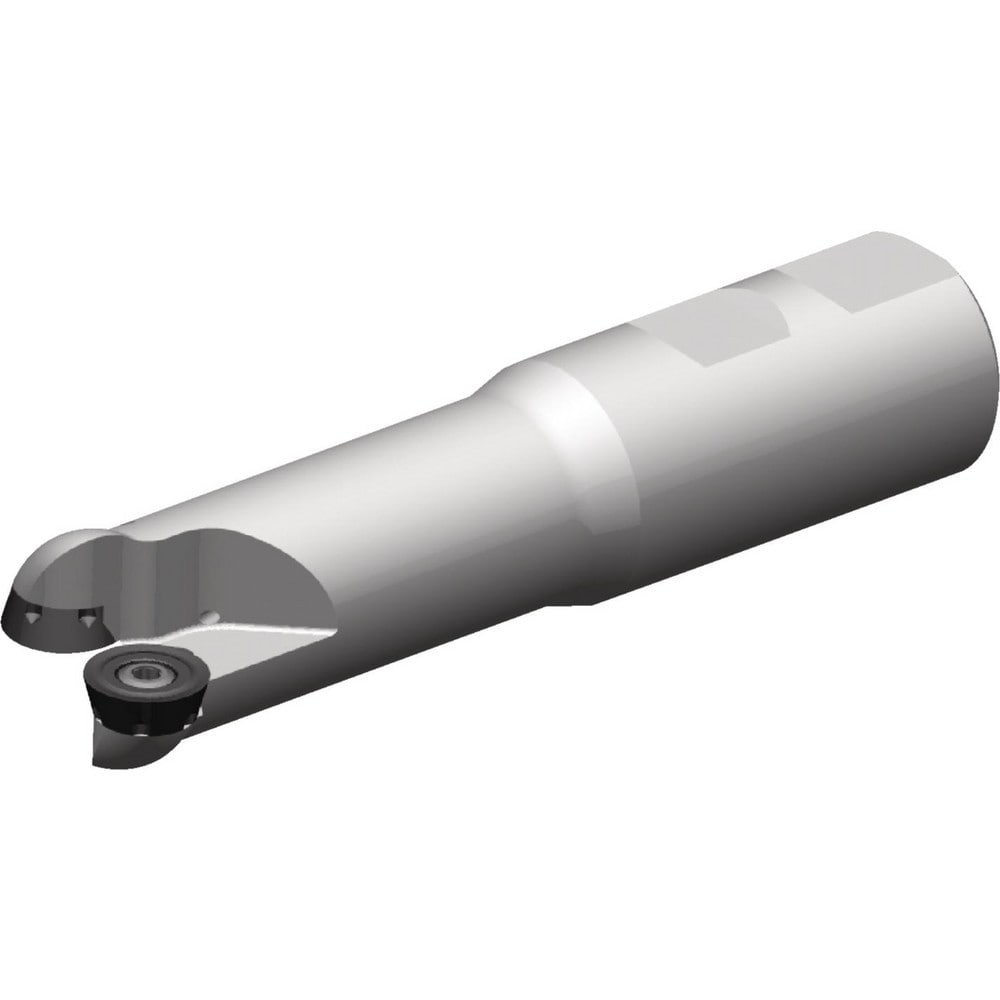

Brand: Widia / Part #: 2021341
Item #: 99420440
Brand: Widia
Model #: 2021341
Product Specifications
| Minimum Cutting Diameter (mm) | 16.00 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Toolholder Style | M100 |
| Shank Type | Weldon Flat |
| Shank Diameter | 1.2598 |
| Maximum Ramping Angle | 7.75 |
| Compatible Insert Style | RD.. |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 1605 |
| Number Of Cutter Inserts | 2 |
| Overall Length (mm) | 142.0000 |
| Series | M100 |
| Flute Type | Straight |
| Maximum Rpm | 19000.000 |
| Shank Length (mm) | 60.000 |
| Functional Length (mm) | 142.00 |
| Head Length (mm) | 82.00 |
| Insert Diameter (mm) | 16.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
