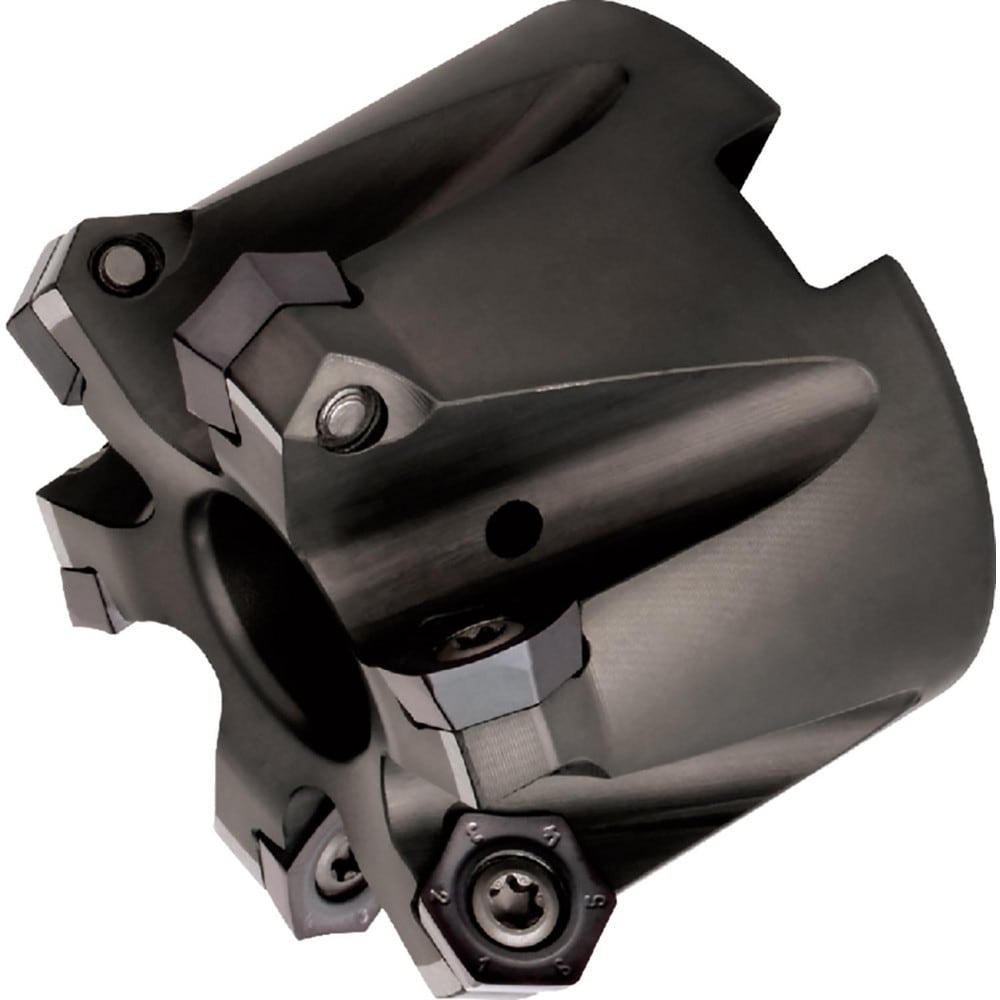

Brand: Widia / Part #: 2263159
Item #: 97474712
Brand: Widia
Model #: 2263159
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 106.40 |
| Maximum Depth of Cut (mm) | 4.80 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 58.000 |
| Compatible Insert Size Code | HP..06T3 |
| Cutter Style | M640 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | M640 |
| Hub Diameter (mm) | 78.000 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Maximum Body Diameter (mm) | 103.86 |
| Maximum RPM | 9500.000 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | HPPT06T3DZENGD |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 10 |
| Coolant Through | No |
| Number Of Flutes | 10 |
