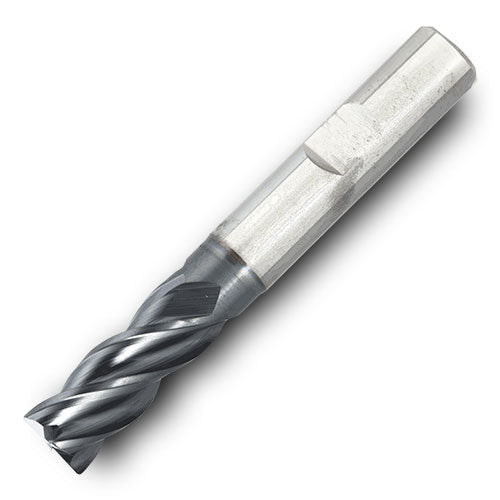

47D00816WSRX630 IN2005
Item #: IC045667161
Brand: Ingersoll
Model #: 5667161
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.315″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Depth of Cut Maximum (APMX) | 0.63″ |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2.48″ |
| Grade | IN2005 |
| Coating | TiAlN |
| Body Material | Steel |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 35-37 Degrees |
| Measurement Type | Inch |
