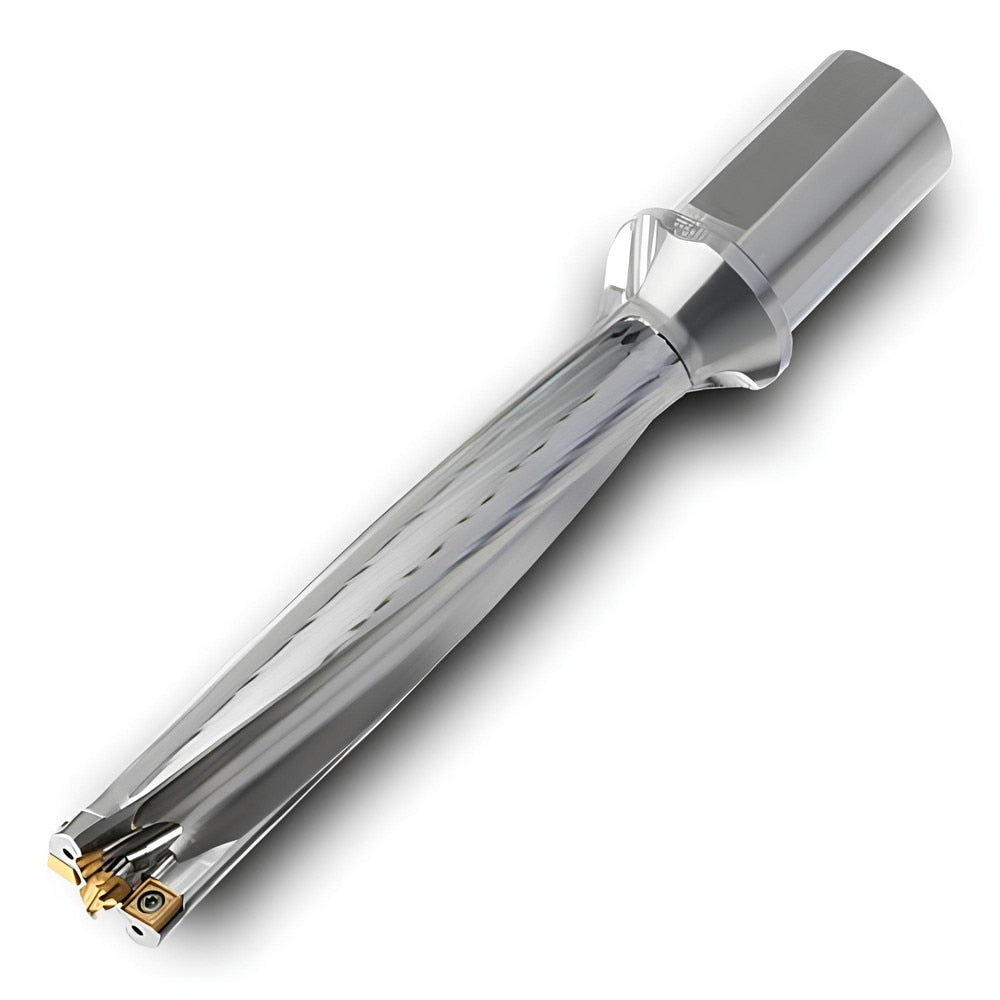

Brand: Ingersoll Cutting Tools / Part #: 6134244

Brand: Ingersoll Cutting Tools / Part #: 6134244


Item #: 98828437
Brand: Ingersoll Cutting Tools
Model #: 6134244

Product Specifications

Minimum Drill Diameter (mm) 43.00
Maximum Drill Diameter (mm) 43.00
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (mm) 220.00
Shank Type Flatted
Insert Style TPC; SPGX
Insert Seat Size 11; 22
Shank Diameter (mm) 40.0000
Tool Material Steel
Compatible Insert Style TPC; SPGX
Compatible Insert Size Code 2290; 110408
Overall Length (mm) 337.2000
Series CD
Toolholder Style CD
Flute Length (mm) 269.20
Body Length 337.200
Shank Length (mm) 70.000
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
