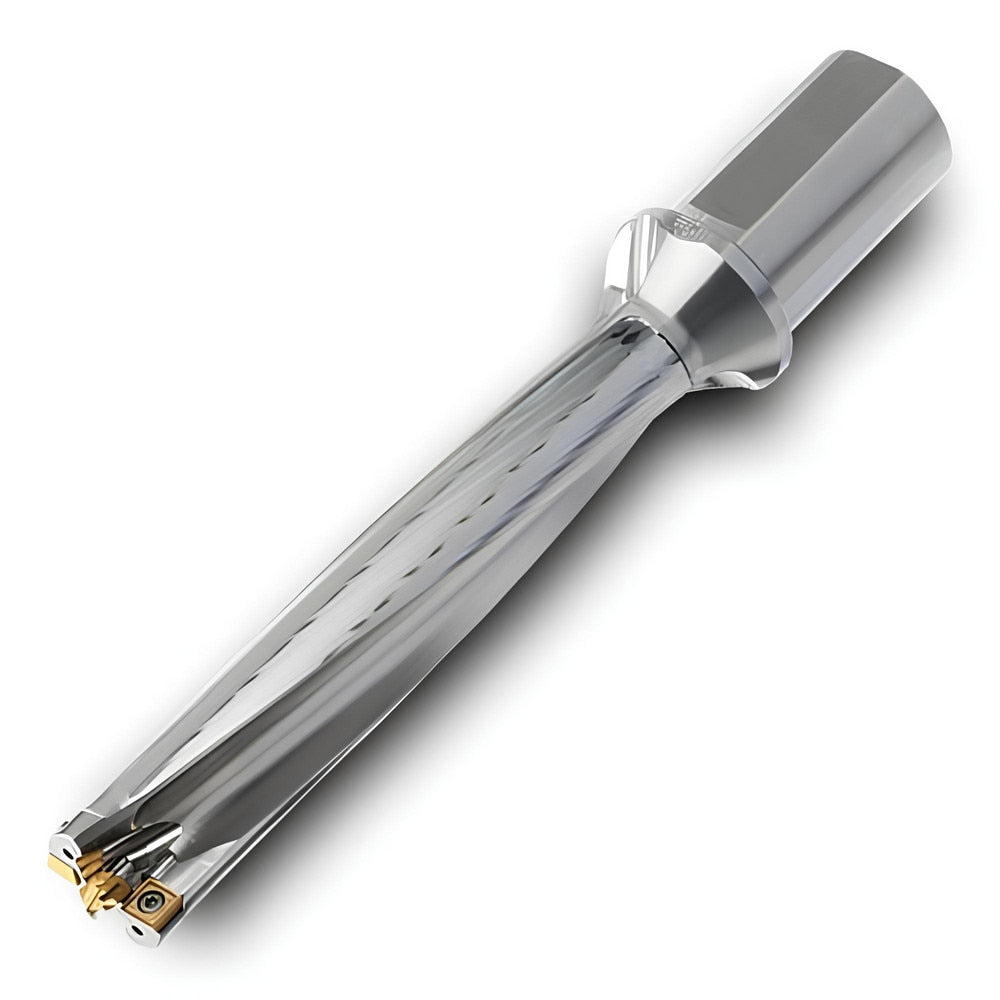

Brand: Ingersoll Cutting Tools / Part #: 6140143

Brand: Ingersoll Cutting Tools / Part #: 6140143


Item #: 98829914
Brand: Ingersoll Cutting Tools
Model #: 6140143

Product Specifications

Minimum Drill Diameter (mm) 41.00
Maximum Drill Diameter (mm) 41.00
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (mm) 210.00
Shank Type Flatted
Insert Style TPC; SPGX
Insert Seat Size 11; 20
Shank Diameter (mm) 40.0000
Tool Material Steel
Compatible Insert Style TPC; SPGX
Compatible Insert Size Code 2090; 110408
Overall Length (mm) 325.1000
Series CD
Toolholder Style CD
Flute Length (mm) 257.10
Body Length 325.100
Shank Length (mm) 70.000
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
