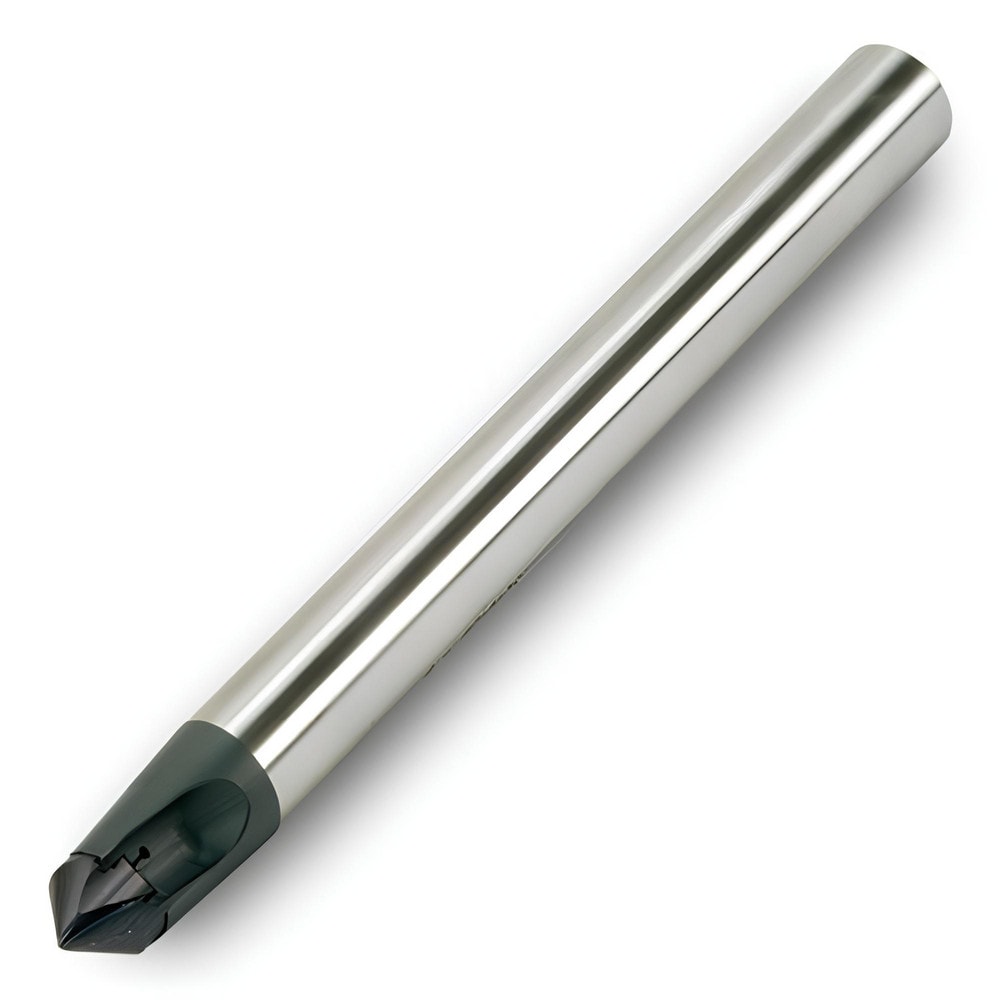

Brand: Ingersoll Cutting Tools / Part #: 3209066
Item #: 84664556
Brand: Ingersoll Cutting Tools
Model #: 3209066
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4720 |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Decimal Inch) | 4.7000 |
| Shank Type | Cylindrical |
| Insert Style | YCB; YAB |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | 12 |
| Tool Material | Steel |
| Compatible Insert Style | YCB; YAB |
| Compatible Insert Size Code | 1200 |
| Overall Length (Decimal Inch) | 5.7600 |
| Series | Y |
| Toolholder Style | Y |
| Body Length (Decimal Inch) | 4.7000 |
| Shank Length (Decimal Inch) | 4.5800 |
| Tool Application | Chamfering; Solid Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | No |
