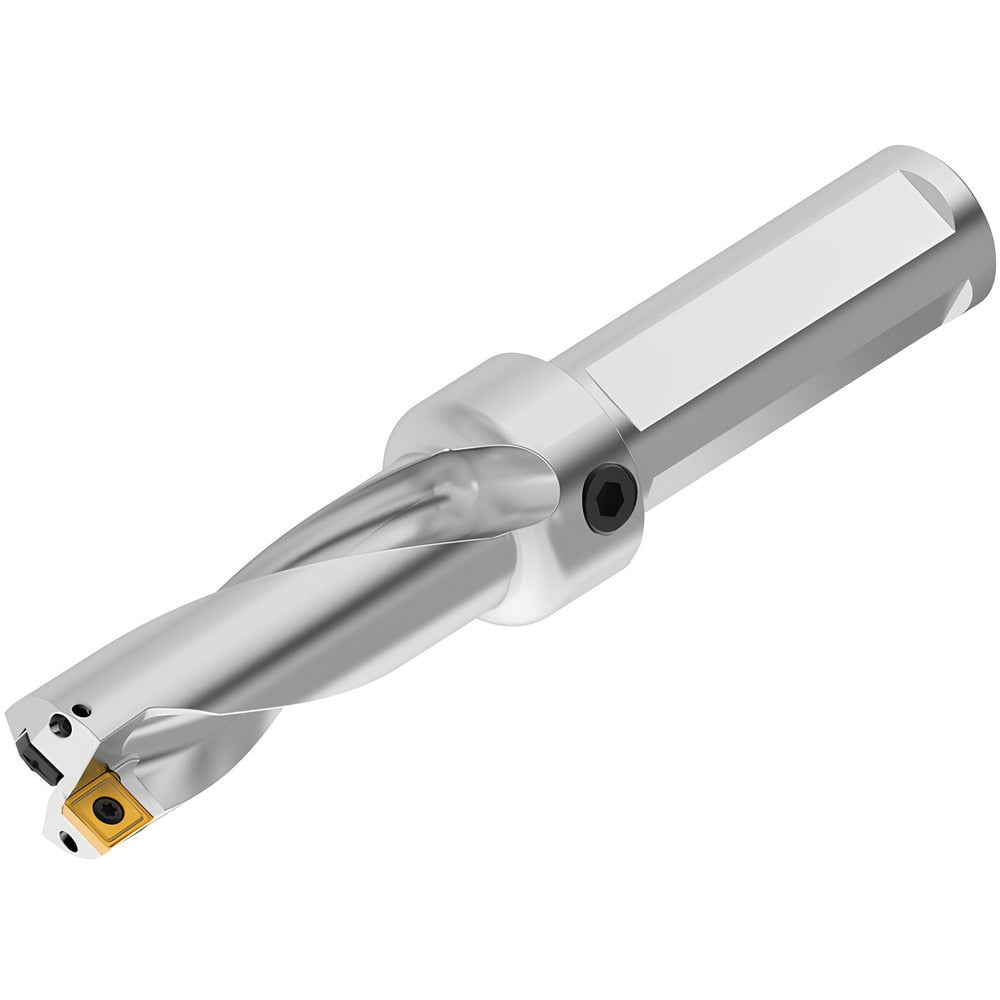

Indexable Insert Drill: DFPR1375R3SSF150, 1.4140" Max Dia, 4.1250" Max Depth, 3xD, 1.5000" Shank Dia
Item #: 02558146
Brand: Kennametal
Model #: 7030542
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (Decimal Inch) | 1.4140 |
| Maximum Drill Depth (Inch) | 4-1/8 |
| Maximum Drill Depth (Decimal Inch) | 4.1250 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 110406; 120405 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 9.0160 |
| Overall Length (Inch) | 9-1/64 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 4.1250 |
| Body Length (Decimal Inch) | 5.2660 |
| Shank Length (Decimal Inch) | 3.7500 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4690x0.1420; 0.4450x0.1420 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR120405__I; DFPR110406__O |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M4-0.7x8.4T15 |
| Coolant Through | Yes |
