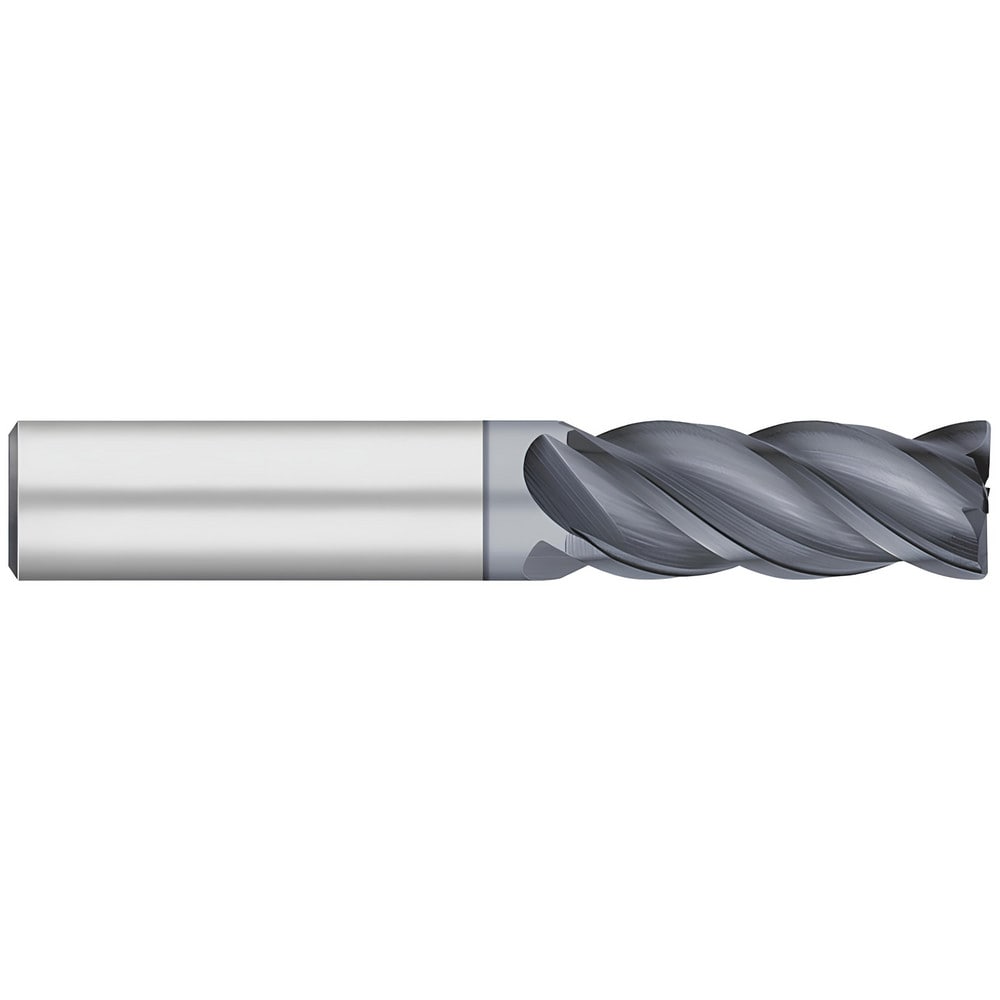

Corner Radius End Mill: 3/8" Dia, 2" LOC, 0.0300" Radius, 4 Flute, Solid Carbide
Item #: 19529015
Brand: Titan USA
Model #: TC25223
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | ALCRO-MAX |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Reach Length (Decimal Inch) | 2.0000 |
| Reach Length (Inch) | 2 |
| Corner Radius Tolerance | -0.0010 to 0.0010 in |
| Mill Diameter Tolerance | -0.0020/0.0000 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S; K; M |
| Series | TC |
| Material Application | High-Temperature Alloy; Ferrous Metal; Stainless Steel; Alloy Steel; Inconel; Titanium Alloy |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
