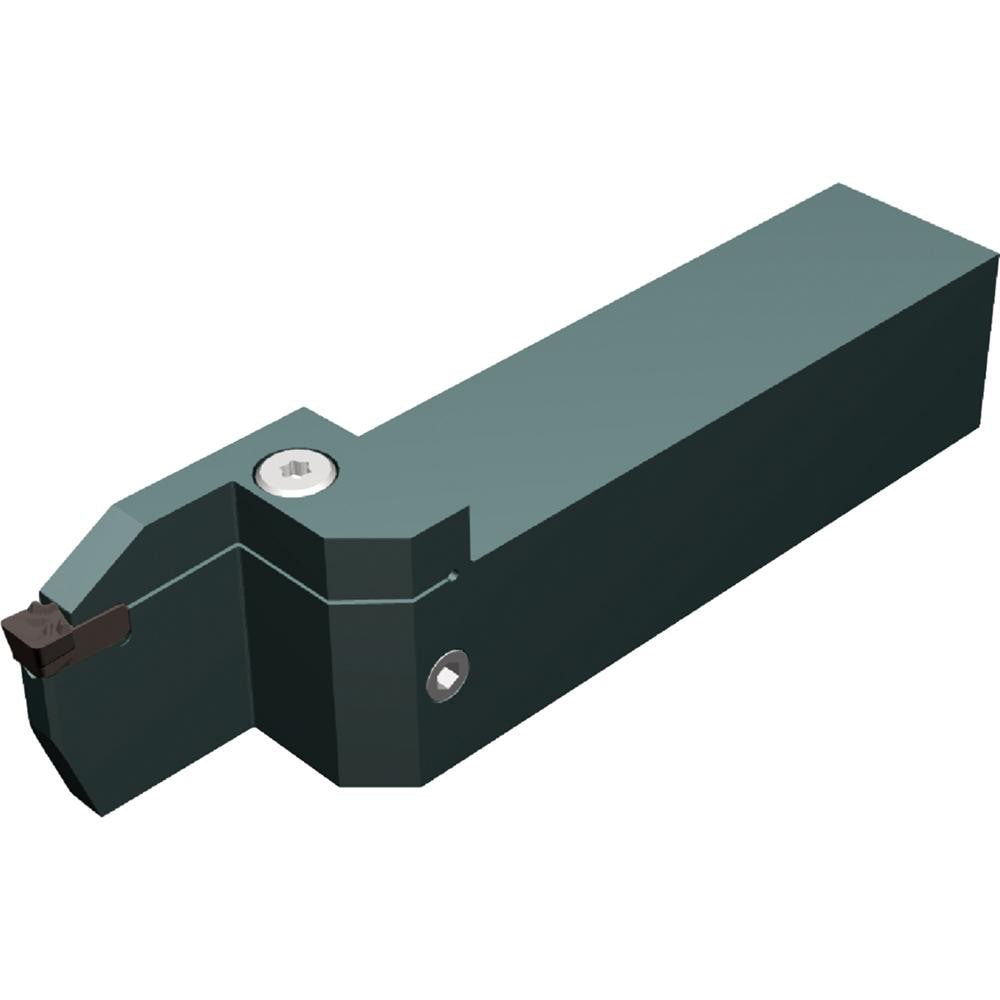

Brand: Widia / Part #: 6461960
Item #: 98382583
Brand: Widia
Model #: 6461960
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 26.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | WGCSM |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0200 |
| Insert Compatibility | WG0200M02P02 |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 108.000 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | WGC |
| Overall Length (mm) | 150.0000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9870 |
| Head Height (mm) | 34.000 |
| Head Length (mm) | 42.00 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 2.0 |
| Coolant Through | No |
