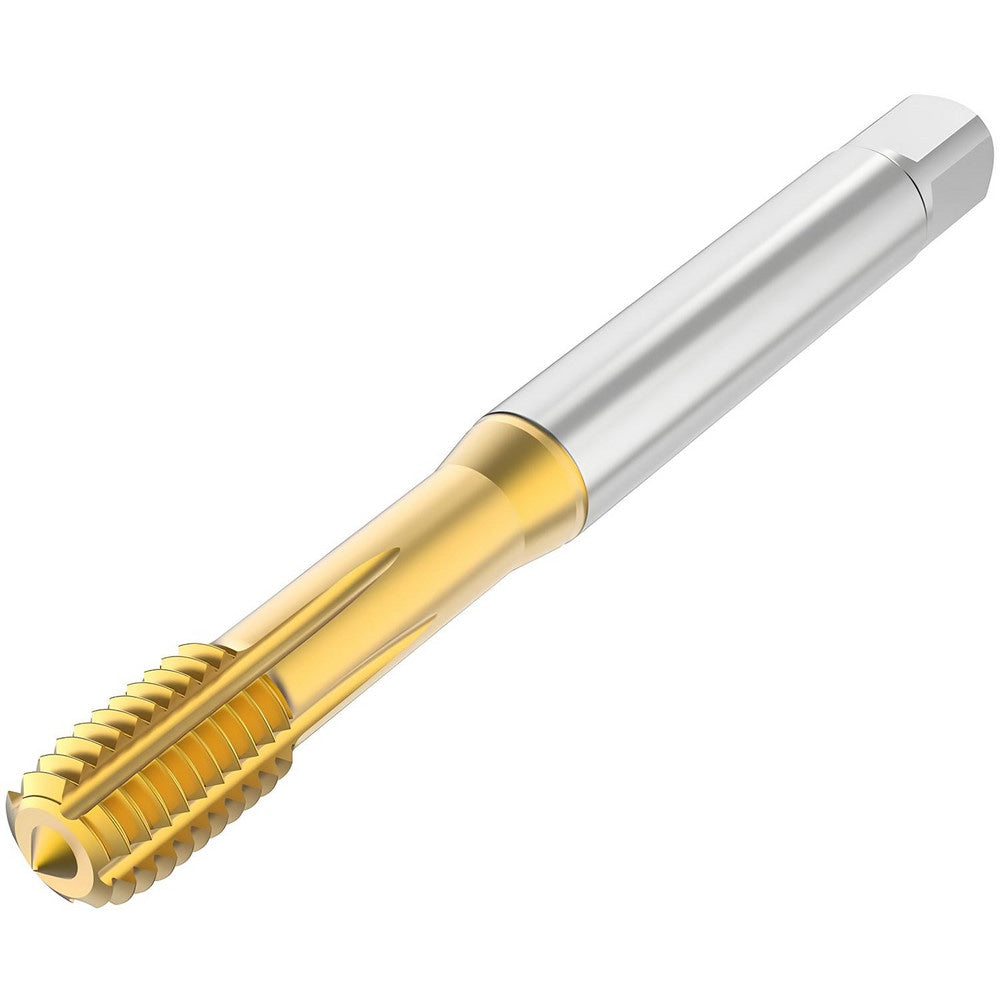

Brand: Seco / Part #: 10139263
Item #: 99565095
Brand: Seco
Model #: 10139263
Product Specifications
| Thread Size (mm) | M10 |
| Overall Length (mm) | 101.8000 |
| Chamfer | Modified Bottoming |
| Coating/Finish | TN |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | HSS-E-PM |
| Thread Length (mm) | 15.00 |
| Thread Depth (mm) | 15.00 |
| Thread Depth | 15.0000 |
| Shank Diameter (mm) | 10.0000 |
| Neck Length | 24.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel |
| Application | Industrial |
| Series | T33 |
| Tap Type | Thread Forming |
| Tapping Depth (mm) | 39.00 |
| Shank Length (mm) | 62.800 |
| Threads per Inch | 17 |
| Class Of Fit | 6GX |
| Coolant Through | No |
