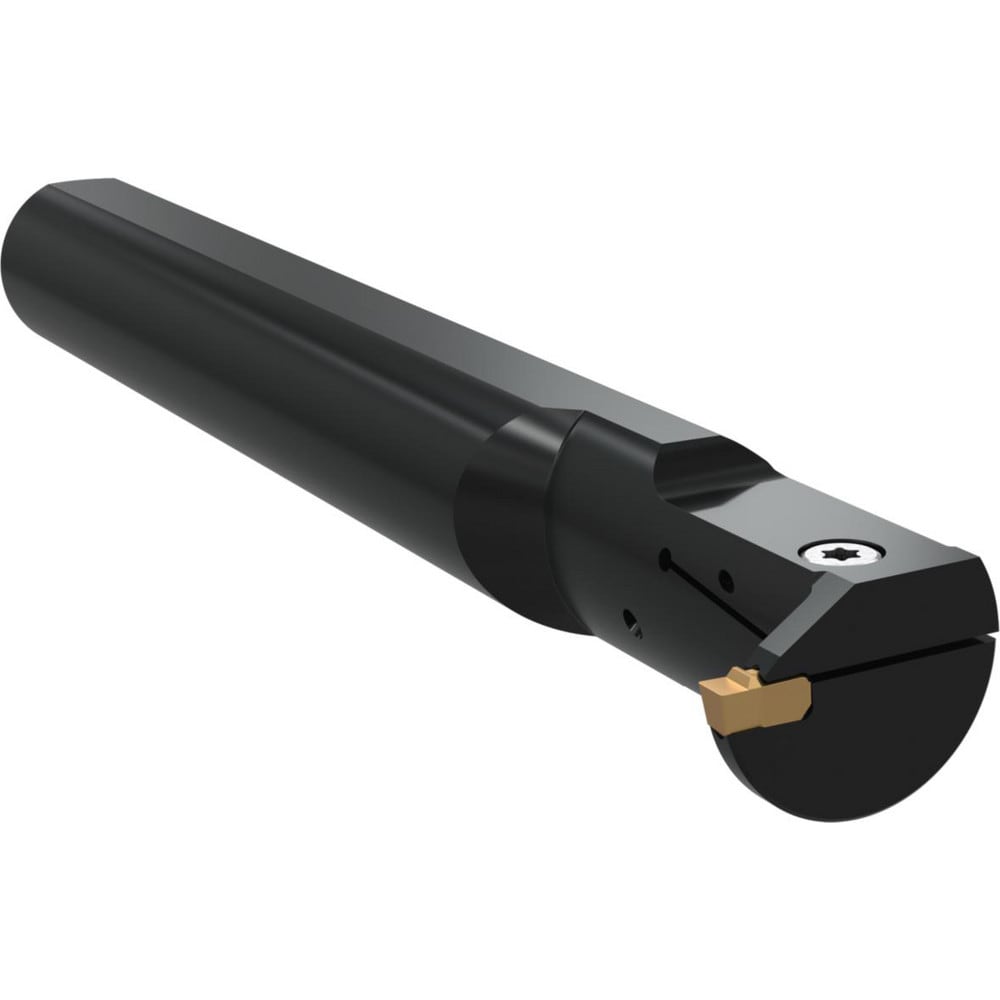

Brand: Widia / Part #: 6948363

Brand: Widia / Part #: 6948363


Item #: 97889661
Brand: Widia
Model #: 6948363

Product Specifications

Internal or External Internal
Toolholder Type Internal Grooving
Insert Seat Size 2
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (mm) 5.00
Minimum Groove Width (mm) 2.00
Maximum Groove Width (mm) 2.00
Toolholder Style WGCEML
Insert Holding Method Clamp
Insert Compatibility WG0200M02P02
Compatible Insert Size Code 2
Shank Width/Diameter (mm) 12.00
Shank Height (mm) 107.51
Series WGC
Shank Length (mm) 107.510
Overall Length (mm) 125.0000
Multi-use Tool No
Cutting Tool Application Grooving
Back of Bar to Cutting Edge (mm) 15.00
Center to Cutting Edge (mm) 9.00
Minimum Hole Diameter (mm) 16.00
Head Length (mm) 24.00
Primary Workpiece Material Universal
Vibration Dampening No
Coolant Hole Diameter (mm) 4.00
Coolant Hole Thread Size 1/16-27 NPT
Mount Type Shank
Manufacturers Catalog Number A12KWGCEML0205M
Toolholder Material Steel
Insert Hand Neutral
Complete Insert Compatibility WG0200M02P02
Coolant Through Yes
Minimum Bore Diameter (mm) 16.000
Maximum Bore Depth (mm) 24.00
$119.69
