Brand: Widia / Part #: 3879853
Item #: 98776081
Brand: Widia
Model #: 3879853
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 1604.. |
| Toolholder Style | SVHBR |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 107.500 |
| Insert Holding Method | Screw |
| Insert Compatibility | VB..1604.. |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 32.00 |
| Series | SVHB |
| Overall Length (mm) | 170.0000 |

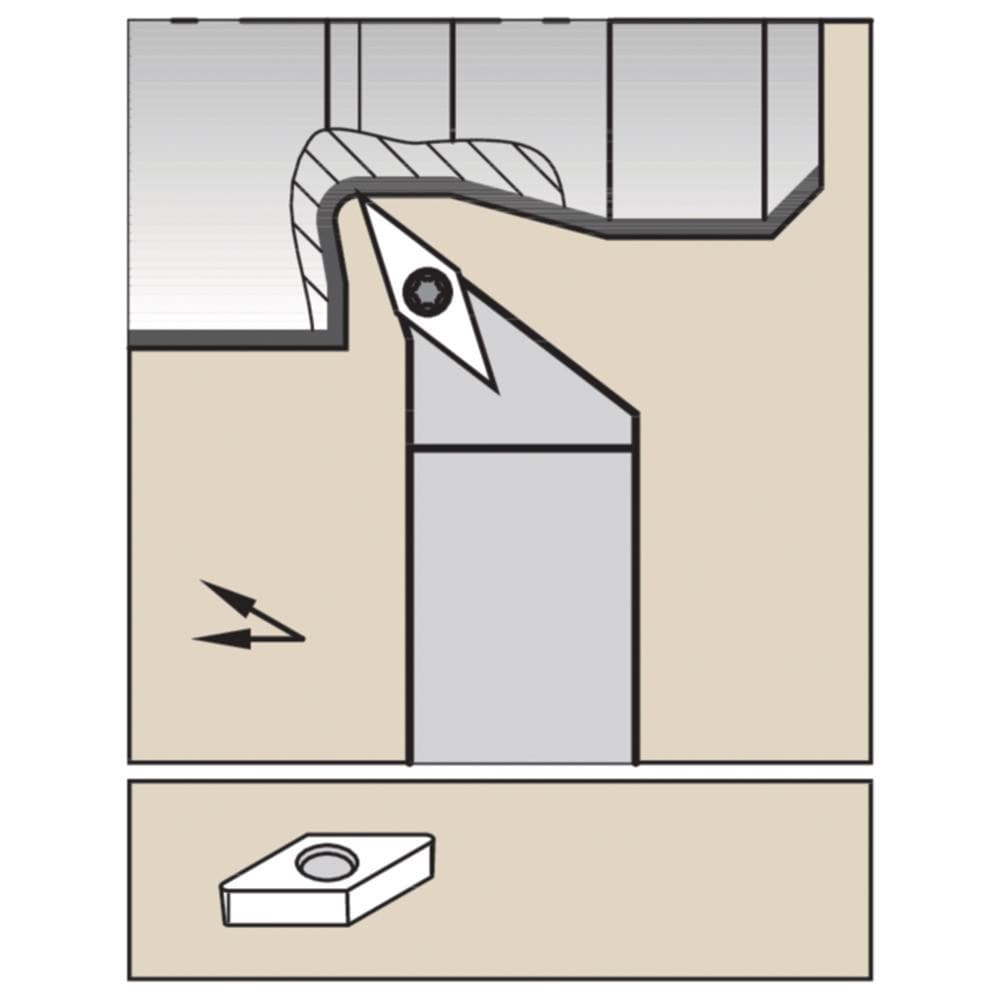

| Cutting Tool Application | Copying; Turning |
| Head Length (mm) | 27.43 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 9.53 |
| Toolholder Material | Steel |
| ISO Number | SVHBR3225P16 |
| Complete Insert Compatibility | VB.. |
| Insert Thickness | 4.76 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 9.53 |
