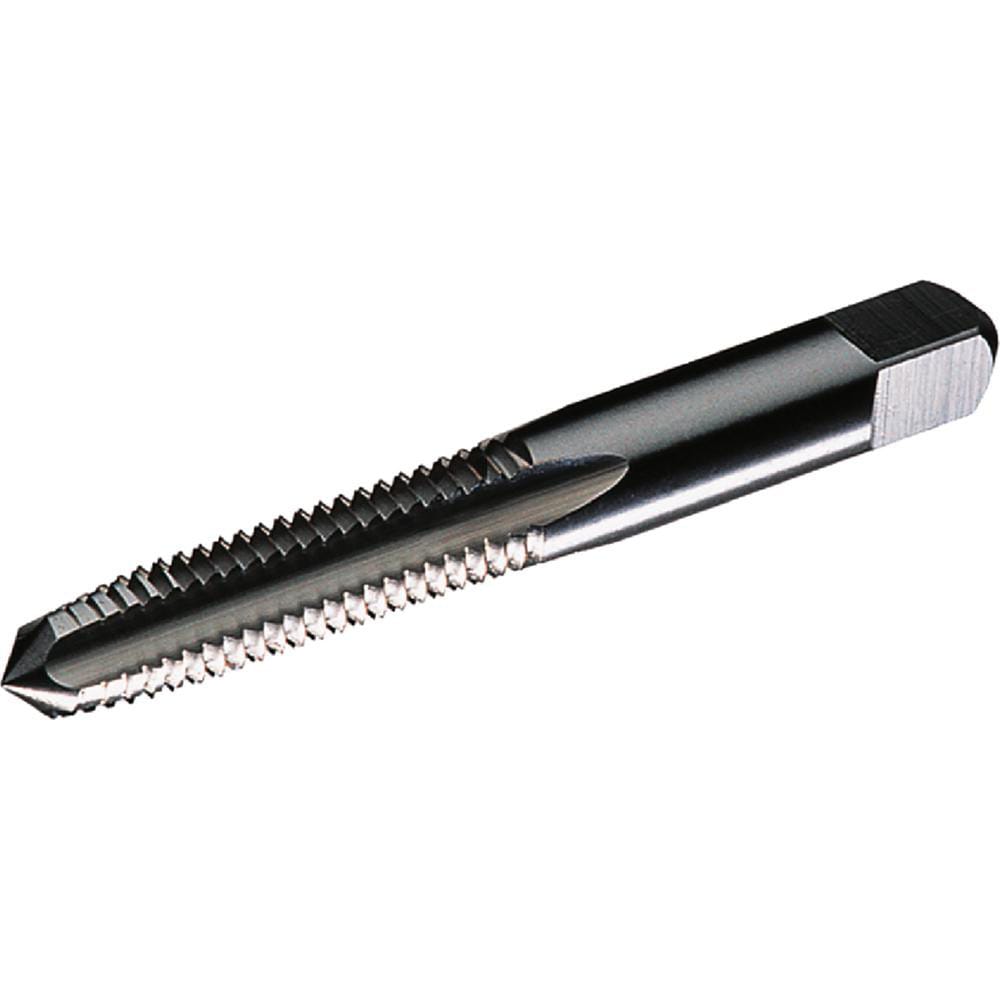

Brand: Widia / Part #: 2709881
Item #: 72369481
Brand: Widia
Model #: 2709881
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 7/8-9 |
| Thread Limit | H4 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Oxide |
| Threads per Inch | 9 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.1111 |
| Overall Length (Decimal Inch) | 4.6875 |
| Thread Length (Decimal Inch) | 2.2188 |
| Thread Depth (Decimal Inch) | 2.2188 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Square Length (mm) | 19.05 |
| Square Size (Decimal Inch) | 0.5230 |
| Series | 5303 |
| Shank Length (Decimal Inch) | 2.4687 |
