Brand: Widia / Part #: 2822085
Item #: 02772796
Brand: Widia
Model #: 2822085

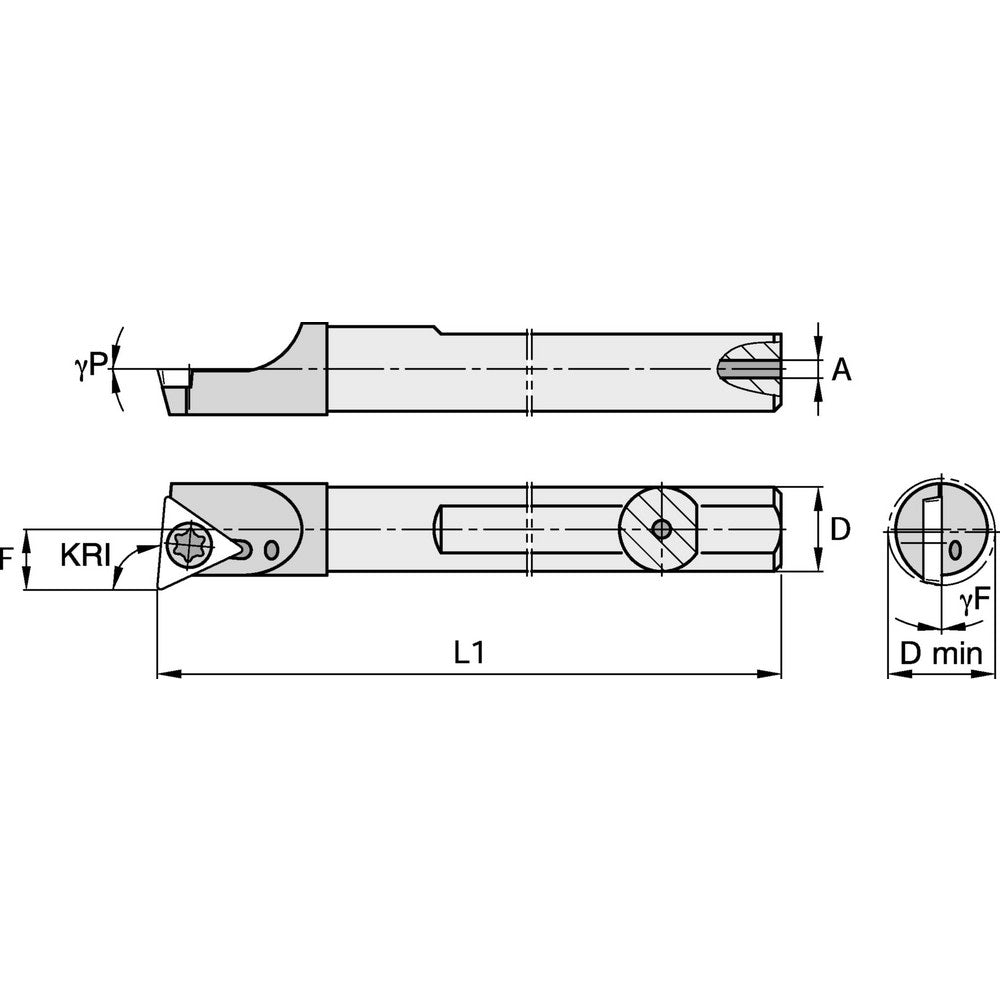

Product Specifications
| Minimum Bore Diameter (mm) | 17.250 |
| Maximum Bore Depth (mm) | 112.00 |
| Toolholder Style | SDBM |
| Tool Material | Carbide |
| Shank Diameter (mm) | 16.0000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 254.0000 |
| Compatible Insert Size Code | TP..160302 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.000 |
| Lead Angle | 95.000 |
| Series | SDBM |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Compatible Insert Thickness (mm) | 3.18 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 16.89 |
| Center to Cutting Edge (mm) | 8.89 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Hole Diameter (mm) | 5.51 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | SDBM162545R |
| Radial Rake | 5 |
| Neck Diameter (mm) | 16.130 |
| Coolant Through | Yes |
