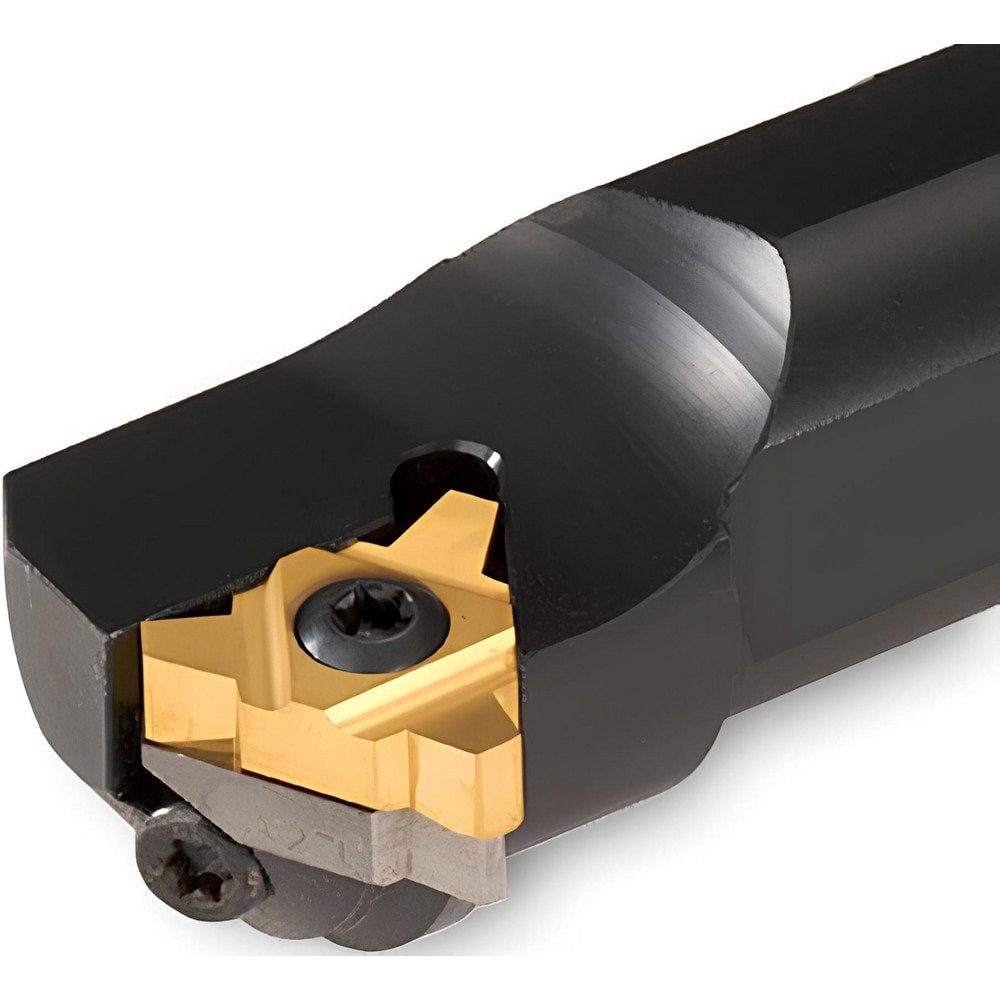

Brand: Ingersoll Cutting Tools / Part #: 3800157
Item #: 89519938
Brand: Ingersoll Cutting Tools
Model #: 3800157
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.3150 |
| Compatible Insert Size Code | 08 |
| Toolholder Style | SIR-UC |
| Insert Compatibility | 08UI |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Screw |
| Shank Length (Inch) | 5 |
| Overall Length (Inch) | 5 |
| Minimum Bore Diameter (Decimal Inch) | 0.3550 |
| Series | SIR-UC |
| Multi-use Tool | Yes |
| Cutting Tool Application | Threading |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4075 |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Carbide |
| Head Width (Inch) | 1/4 |
| Style | SIR-UC |
| D -In-- | 0.3150 |
| Coolant Through | No |
