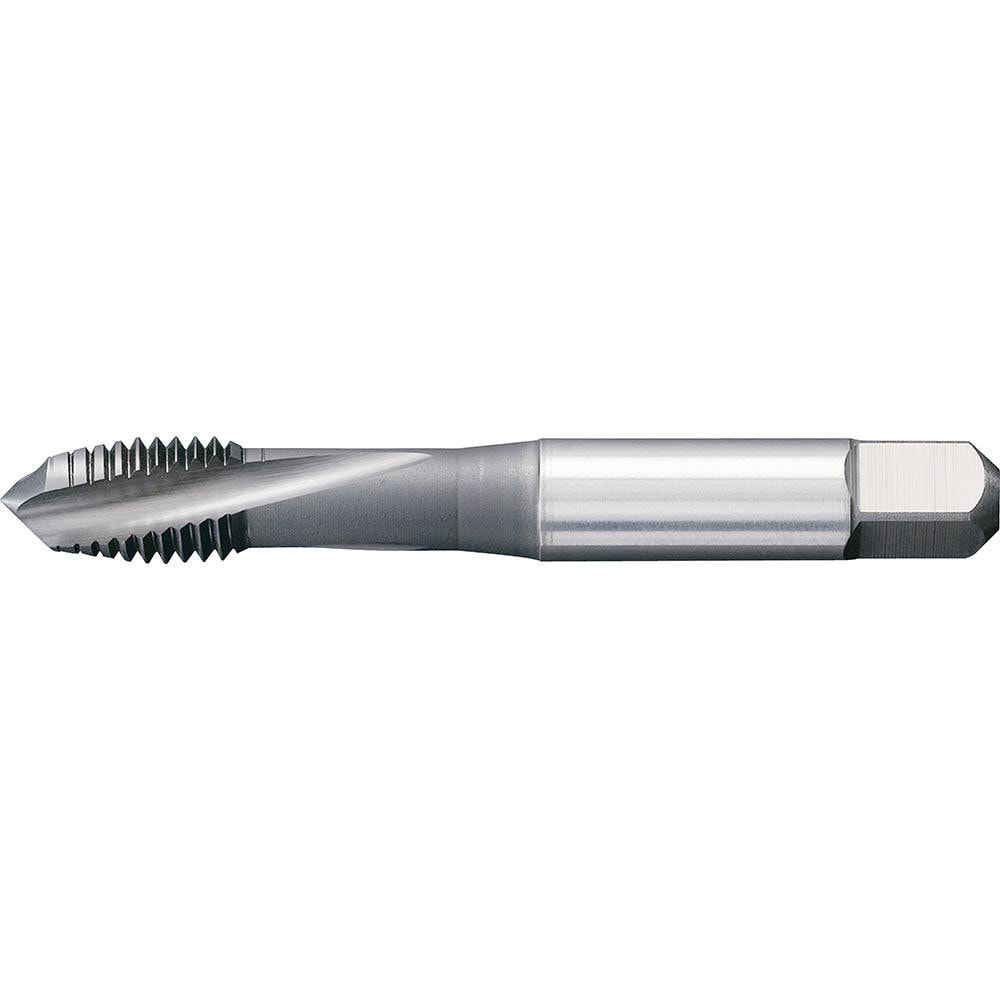

Brand: Widia / Part #: 3955017
Item #: 97456511
Brand: Widia
Model #: 3955017
Product Specifications
| Thread Size (mm) | M12x1.75 |
| Chamfer | Plug |
| Thread Limit | D9 |
| Class Of Fit | 6HX |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 15 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | C; CrC |
| Thread Depth (mm) | 44.17 |
| Coolant Through | No |
| Thread Length (mm) | 19.60 |
| Overall Length (mm) | 85.8500 |
| Thread Pitch (mm) | 1.75 |
| Thread Standard | Metric |
| Material Grade | WS34MG |
| Shank Diameter (mm) | 9.3200 |
| Square Length (mm) | 11.20 |
| Square Size (mm) | 6.98 |
| Material Application | Stainless Steel |
| Series | GT20 |
