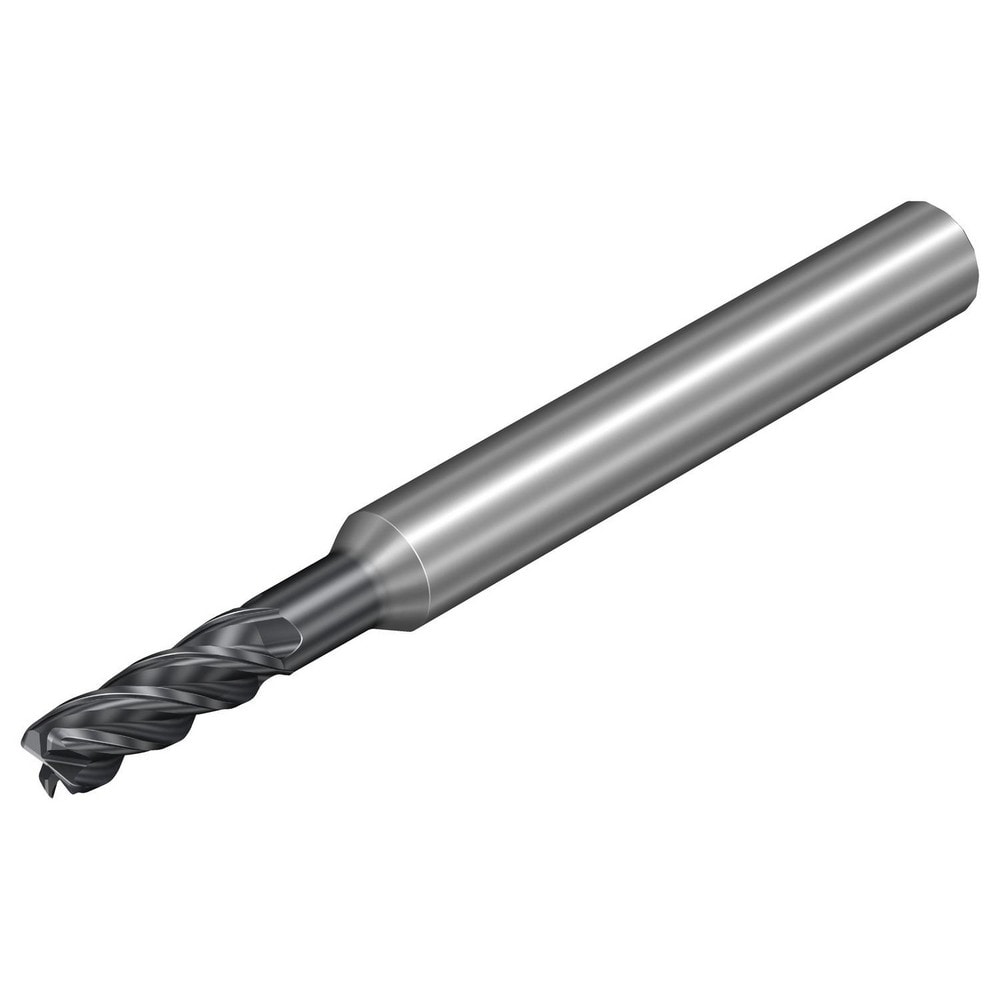

Brand: Sandvik Coromant / Part #: 8213517
Item #: 97626899
Brand: Sandvik Coromant
Model #: 8213517
Product Specifications
| Mill Diameter (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 57.0000 |
| Length of Cut (mm) | 9.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.1181 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.2441 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3543 |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | CoroMill Dura |
| Coating Classification | PVD |
| Manufacturers Catalog Number | 1K354-0300-050-XC 1730 |
