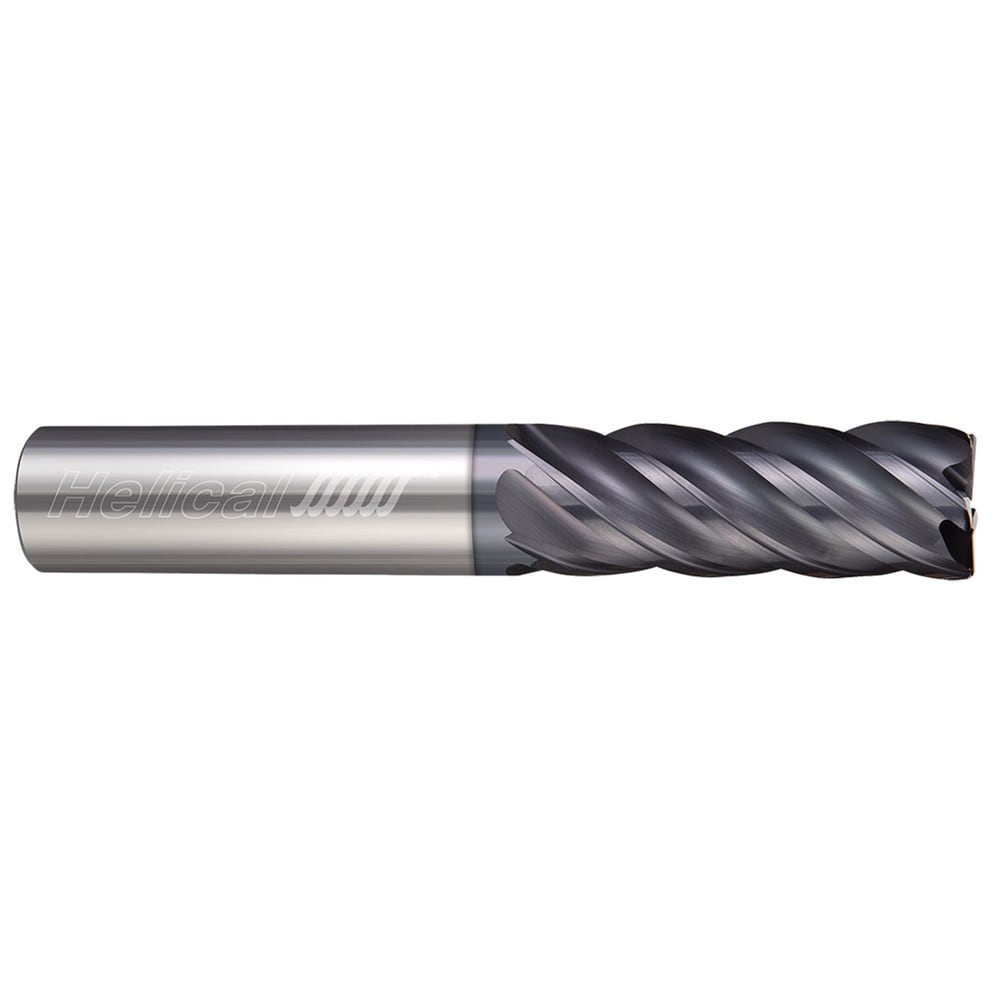

Brand: Helical Solutions / Part #: 82548
Item #: 97854434
Brand: Helical Solutions
Model #: 82548
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Corner Radius (Inch) | 1/64 |
| Coating/Finish | Aplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (Inch) | 3 |
| Length of Cut (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Extended Reach | No |
| Shank Type | Round |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Series | End Mills for Steels - 5 Flute - Corner Radius - Variable Pitch |
