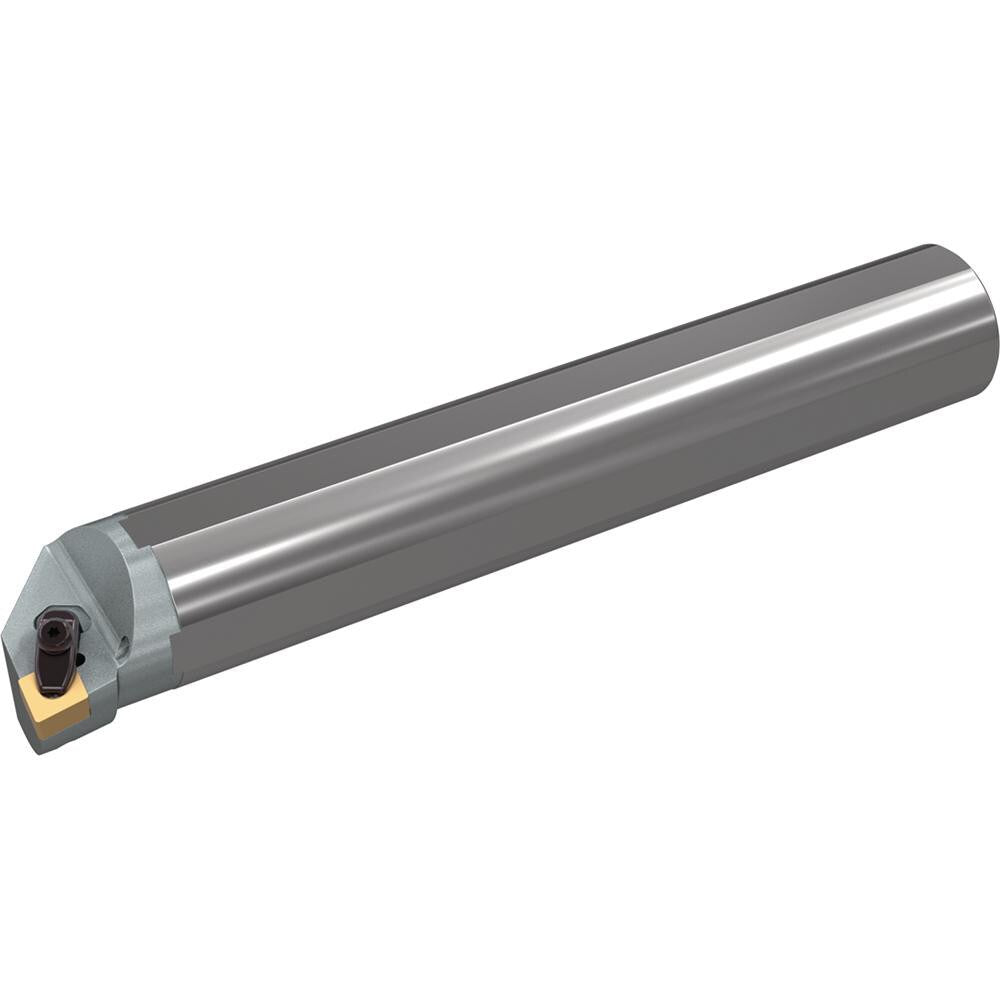

Brand: Widia / Part #: 5696306
Item #: 02771491
Brand: Widia
Model #: 5696306
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 3.0300 |
| Maximum Bore Depth (Decimal Inch) | 7.5000 |
| Toolholder Style | DCLNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 16.0000 |
| Overall Length (Inch) | 16 |
| Compatible Insert Size Code | CN..643 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | -10.000 |
| Lead Angle | -5.000 |
| Series | A-DCLN |
| Insert Inscribed Circle (Inch) | 3/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (mm) | 6.35 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7810 |
| Center to Cutting Edge (Decimal Inch) | 1.5310 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A40VDCLNR6KC4 |
| Radial Rake | -5 |
| Coolant Through | Yes |
