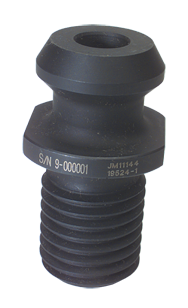

Style B M16X2.0 Retention Knob 90 Deg BT40

Item #: GM8531113BHTHS
Manufacturer: Generic USA
Mfg #:

Technical Specifications:
•: .923 •Angle: 90 •Brand Name: Generic USA •Class: Machine Accessories •Dimension L1: 1.1 •Dimension L2: 1.376 •Flange Thickness: .234 •Knob Diameter: .589 •Neck: .392 •Pilot: .669 •Socket Number: RKW40 •Tool Shank: BT40 •Type: Retention Knob •TPI: M16 x 2.0

Description:
•High Torque (HT) and High Torque High Strength (HTHS0 retention knobs will increase production 10 to 40%, reduce set-up times, reduce polishing times, increase spindle life, improve finishes and increase tool life •HT knobs are manufactured from AISI 8620H material •HS and HTSHS knobs are made from AISI 9310H •HT and HTHS knobs will fit any toolholder made to industry standards •HT and HTHS retentionknbos should be installed according to the manufacturer's torque chart provided with each knob using a retention knob socket and torque wrench •Marked with serieal numbers

Shipping Info:
•Actual Weight - .1500
