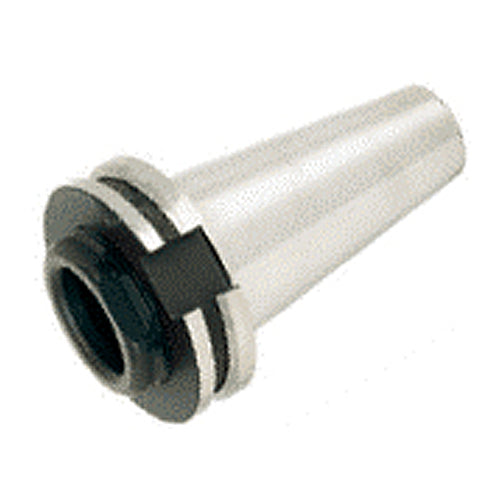

CAT40 ER32 SHORT
Item #: GM664501600
Brand: Iscar
Model #: 4501600
| Product Specifications | |
|---|---|
| Shank Size (SS) | 40 |
| Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Diameter (BD) | 1.575″ |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Protruding Length (LPR) | 1.124″ |
| Figure | 1 |
| Connection Diameter Machine Side (DCONMS) | 40″ |
| Measurement Type | Inch |
| Tool Type | DIN 69871 |
| Body Material | Steel |
| Style | ER32 |
| Connection Code Machine Side (CCMS) | CAT |
