Brand: Widia / Part #: 3641669
Item #: 97987432
Brand: Widia
Model #: 3641669
Product Specifications
| Internal or External | External |
| Toolholder Type | External Grooving |
| Insert Seat Size | 4 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 7.47 |
| Minimum Groove Width (mm) | 0.00 |
| Maximum Groove Width (mm) | 4.00 |
| Toolholder Style | NS |
| Insert Holding Method | Clamp |
| Insert Compatibility | N.4R |
| Compatible Insert Size Code | 4 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Height (mm) | 136.25 |
| Series | NS |
| Shank Length (mm) | 136.250 |
| Overall Length (mm) | 170.0000 |
| Multi-use Tool | Yes |

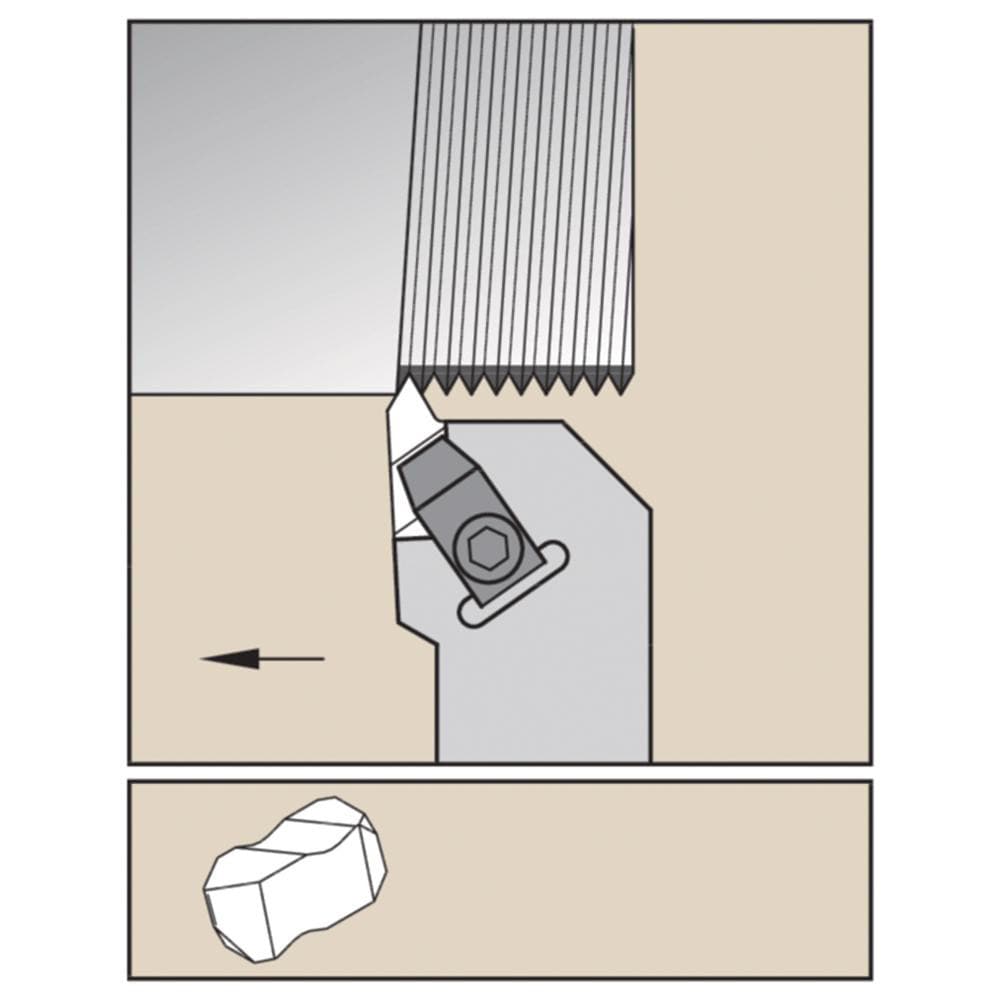

| Cutting Tool Application | Grooving; Threading |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Head Height (mm) | 25.400 |
| Head Length (mm) | 0.00 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Multi-Use Application | Yes |
| Mount Type | Shank |
| Manufacturers Catalog Number | NSR3232P4 |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Complete Insert Compatibility | N.4R |
| Coolant Through | No |
| Minimum Bore Diameter (mm) | 0.000 |
| Maximum Bore Depth (mm) | 0.00 |
