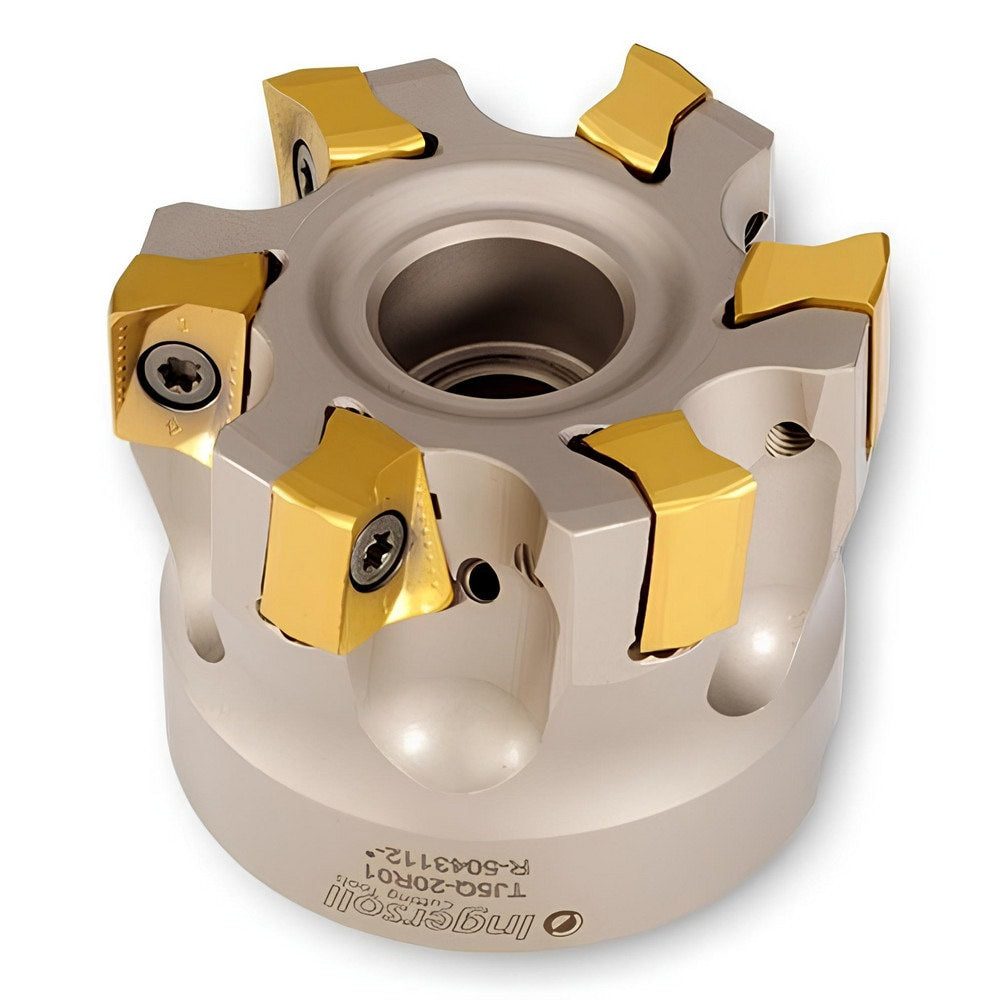

Brand: Ingersoll Cutting Tools / Part #: 3031353
Item #: 36035889
Brand: Ingersoll Cutting Tools
Model #: 3031353
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Minimum Cutting Diameter (mm) | 76.20 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | 1206 |
| Maximum Ramping Angle | 0.3 |
| Cutter Style | TJ6Q |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Negative |
| Series | TJ6Q |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Inch) | 3/8 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Pitch Type | Normal |
| Tool Application | Facing; Helical Interpolation; Ramping; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.4300 |
| Complete Insert Compatibility | ANHU1206? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | TJ6Q-30R01 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 6 |
