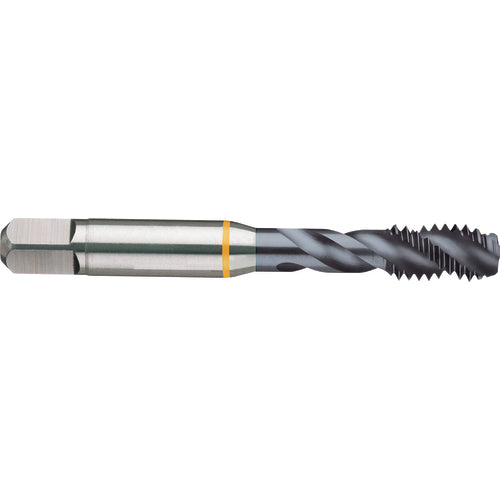

1/4″ - 28 NF 3-Flute, H5 Semi-Bottoming Series/List # 4410 Spiral Flute Tap
Item #: GD1544105063500
Brand: Guhring
Model #: 9044105063500
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 28 |
| Chamfer | 2 to 3 |
| Thread Standard | NF |
| Coating | TiCN |
| Overall Length (OAL) | 2.500″ |
| Flute Length | 0.354″ |
| Thread Cutting Part Length (THL) | 0.354″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees |
| Series/List # | 4410 |
| Cutting Edge Material | HSS-E |
