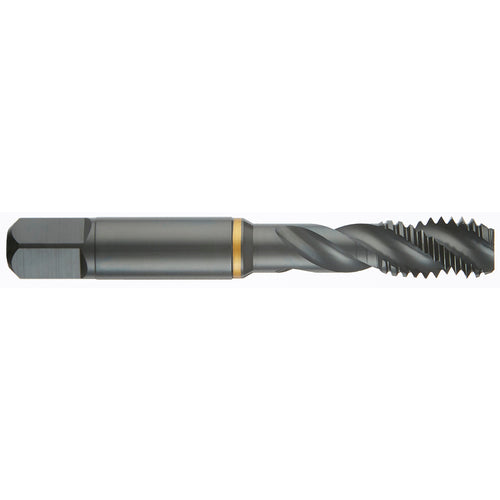

5/16″ - 18 UNC 3-Flute, H5 Semi-Bottoming Series/List # 4407 Spiral Flute Tap
Item #: GD1544075079380
Brand: Guhring
Model #: 9044075079380
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 18 |
| Chamfer | 2-3 Form C |
| Thread Standard | UNC |
| Coating | Steam Oxide |
| Overall Length (OAL) | 2.721″ |
| Flute Length | 0.5512″ |
| Thread Cutting Part Length (THL) | 0.551″ |
| Flute Type | Spiral |
| Usable Length (LU) | 1.377″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Coolant Supply Property (CSP) | without |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees |
| Series/List # | 4407 |
| Cutting Edge Material | HSS-E |
