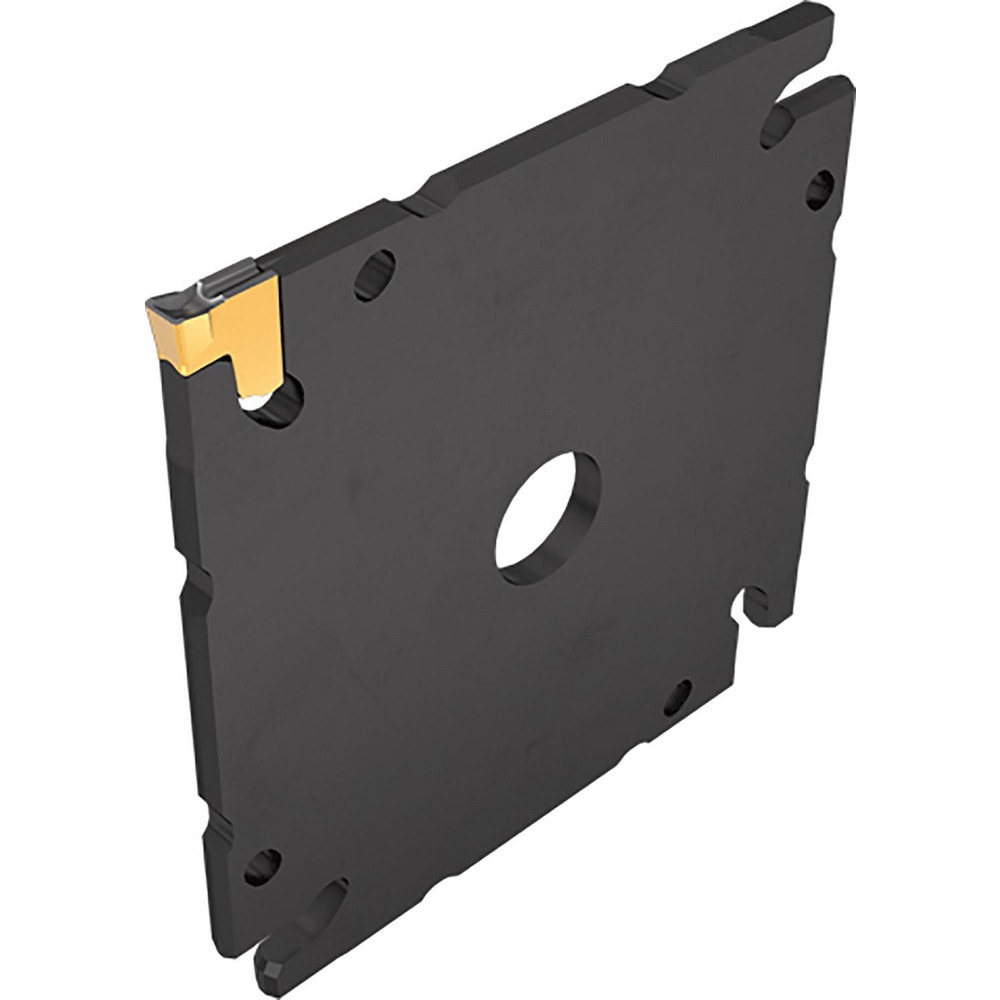

Brand: Iscar / Part #: 3387743
Item #: 13178066
Brand: Iscar
Model #: 3387743
Product Specifications
| Cutting Direction | Neutral |
| Hand | Neutral |
| Blade Height (mm) | 49.00 |
| Blade Width (mm) | 2.50 |
| Blade Style | TGAQ |
| Compatible Insert Style | TAG |
| Compatible Insert Size Code | N3 |
| Tool Material | Steel |
| Insert Holding Method | Screw |
| Maximum Workpiece Diameter (mm) | 65.00 |
| Series | JetCrown |
| Tool Block Style | TGTBQ |
| Maximum Depth of Cut (mm) | 32.50 |
| Minimum Insert Width (mm) | 2.80 |
| Maximum Insert Width (mm) | 3.50 |
| Complete Insert Compatibility | TAG N3 |
| Manufacturers Catalog Number | TGAQ D65-3-4Z-ECD |
