Brand: Widia / Part #: 2824747

Brand: Widia / Part #: 2824747


Item #: 02770717
Brand: Widia
Model #: 2824747

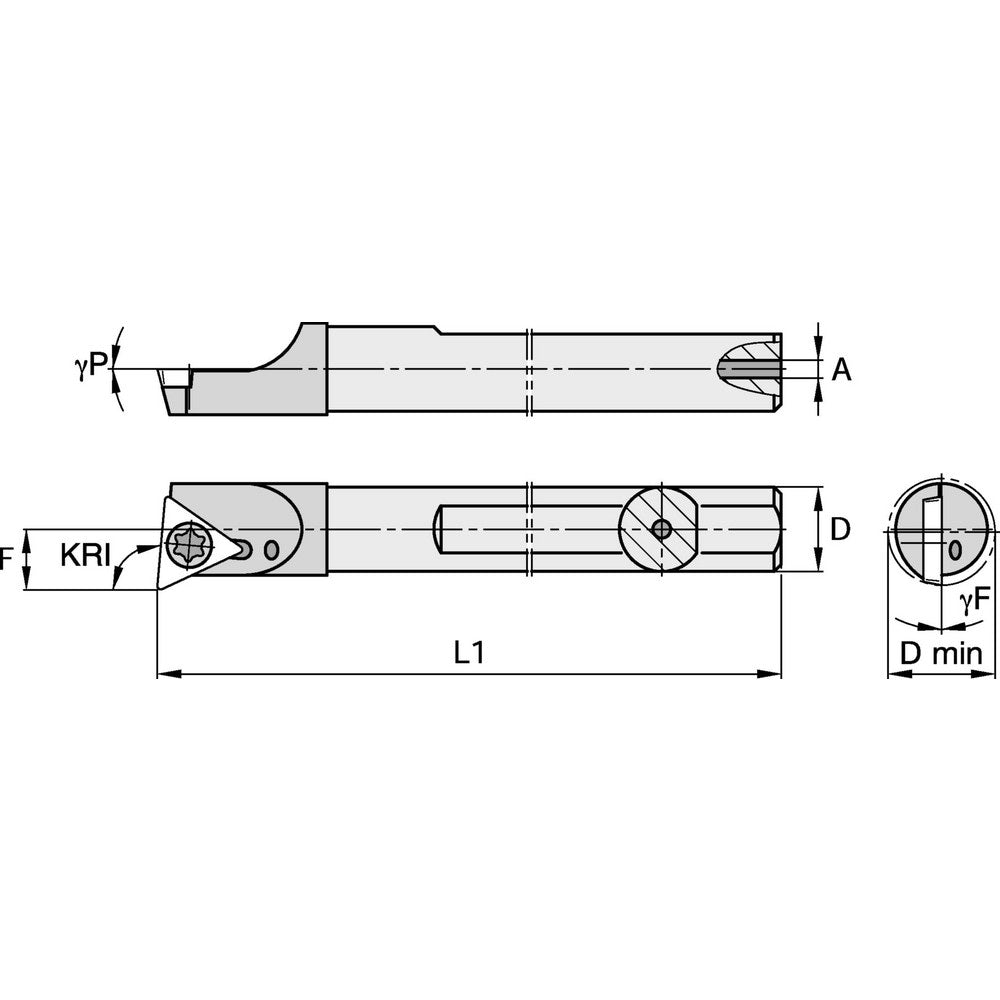

Product Specifications

Minimum Bore Diameter (mm) 13.160
Maximum Bore Depth (mm) 84.00
Toolholder Style QCBM
Tool Material Carbide
Shank Diameter (mm) 12.0000
Hand of Holder Right Hand
Overall Length (mm) 254.0000
Compatible Insert Size Code TP..110202
Insert Holding Method Screw
Compatible Insert Shape Triangle
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle 0.000
Lead Angle 95.000
Series QCBM
Insert Inscribed Circle (Inch) 1/4
Compatible Insert Thickness (Decimal Inch) 0.0938
Compatible Insert Thickness (mm) 2.38
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 12.81
Center to Cutting Edge (mm) 6.81
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.0938
Insert Thickness (Inch) 3/32
Coolant Hole Diameter (mm) 4.70
Number of Inserts Included in Order 0
Manufacturers Catalog Number QCBM122545R
Radial Rake 5
Coolant Through Yes
$417.13
